Technical Data Sheet

  • Absorbed current at 230 V (A)
    1,58
  • Absorbed current at 400 V (A)
    0,91
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    370
  • Motor class
    F
  • Operating temperature (°C)
    60
  • Voltage (V)
    230-400
  • Weight (Kg)
    9,5
  • Max airflow (m³/h)
    1330
  • RPM
    2800

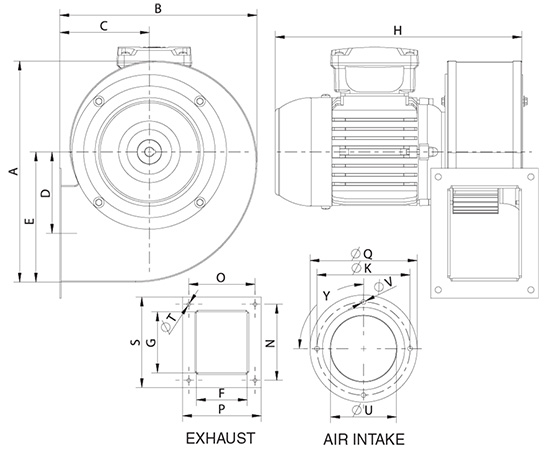

  • Dimension Q (mm)
    207
  • Dimension U (mm)
    Ø 127
  • Dimension V (mm)
    Ø 9
  • Dimension Y (mm)
    4X90°
  • Size A (mm)
    295
  • Size B (mm)
    266
  • Size C (mm)
    119
  • Size D (mm)
    108
  • Size E (mm)
    171,5
  • Size F (mm)
    100
  • Size G (mm)
    120
  • Size H (mm)
    325
  • Size K (mm)
    180
  • Size N (mm)
    147
  • Size O (mm)
    128
  • Size P (mm)
    152
  • Size S (mm)
    172
  • Size T (mm)
    Ø 7
