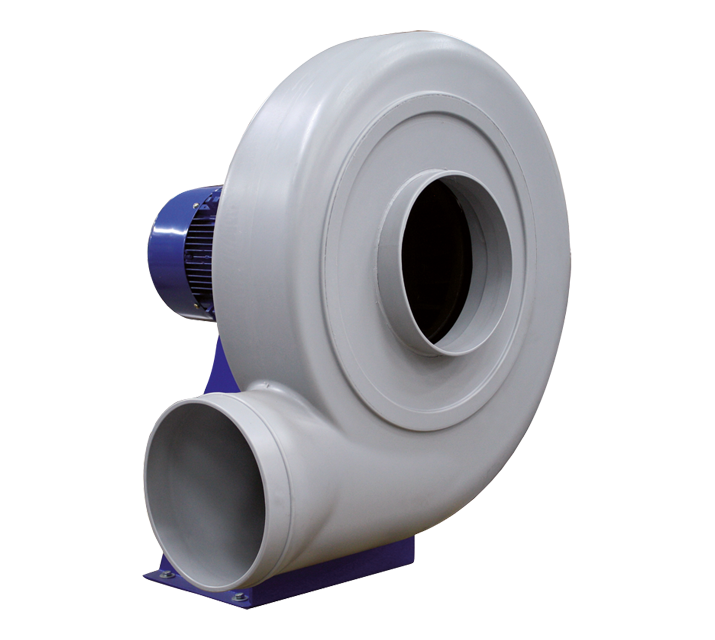

CRC-R 25/2 T - Vortice

Description

• Nominal diameter: 250 mm.
• Casing made of plastic resin (PE), specifically designed for installation in corrosive environments, chemical and petrochemical industries, laboratories and gas cabins.
• 2-pole, three-phase AC motor, class F, with IP55 protection, 230/400V-50Hz power supply.
• Backward centrifugal impeller made of plastic resin (PP).
• Motor support made of laminated steel sheet with epoxy powder finish.
• Stainless steel nuts and bolts, for greater resistance over time against aggressive agents.
• Maximum continuous operating temperature: +50°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

1,7
Absorbed current at 400 V (A)

0,97
Frequency (Hz)

50
IP

55
Max absorbed power (W)

426,6
Max ambient temperature for continuous operation (°C)

60
Max temperature of exhaust air (continuous operation)

70
Motor class

F
Nominal diameter (mm)

200
Number of poles

2

Voltage (V)

230/400
Weight (Kg)

13
Max airflow (l/s)

1238
Max airflow (m³/h)

2105,3
Max pressure (mmH2O)

73,2
Max pressure (Pa)

717,4
RPM

2730
Sound power Lw [dB(A)]

91,64
Sound pressure Lp [dB (A)] at 3 m

71,64

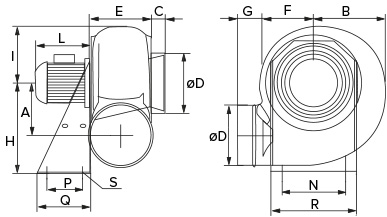

Dimension Q (mm)

140
Dimension R (mm)

290
Size A (mm)

173
Size B (mm)

228
Size C (mm)

35
Size D (mm)

Ø 200
Size E (mm)

185
Size F (mm)

170
Size G (mm)

55
Size H (mm)

310
Size I (mm)

190
Size L (mm)

220
Size N (mm)

255
Size P (mm)

100
Size S (mm)

11
