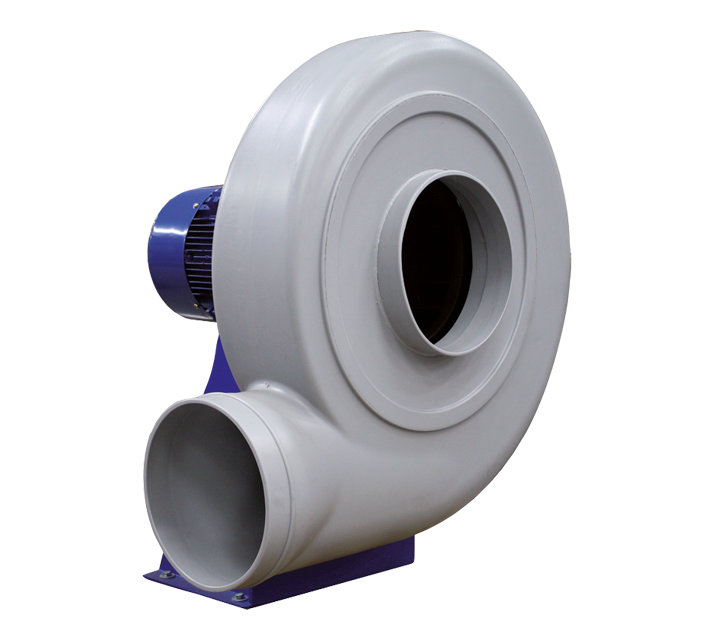

CRC-A 28/4 T - Vortice

Description

• Nominal diameter: 280 mm.
• Casing made of plastic resin (PE), specifically designed for installation in corrosive environments, chemical and petrochemical industries, laboratories and gas cabins.
• 4-pole, three-phase AC motor, class F, with IP55 protection, 230/400V-50Hz power supply.
• Forward centrifugal impeller made of plastic resin (PP).
• Motor support made of laminated steel sheet with epoxy powder finish.
• Stainless steel nuts and bolts, for greater resistance over time against aggressive agents.
• Maximum continuous operating temperature: +50°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

1,2
Absorbed current at 400 V (A)

0,7
Frequency (Hz)

50
IP

55
Max absorbed power (W)

136,9
Max ambient temperature for continuous operation (°C)

60
Max temperature of exhaust air (continuous operation)

70
Motor class

F
Nominal diameter (mm)

180
Number of poles

4

Voltage (V)

230/400
Weight (Kg)

14
Max airflow (l/s)

505
Max airflow (m³/h)

859
Max pressure (mmH2O)

33,6
Max pressure (Pa)

329,3
RPM

1310
Sound power Lw [dB(A)]

88,3
Sound pressure Lp [dB (A)] at 3 m

68,3

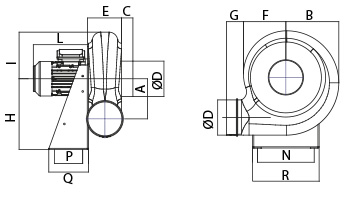

Dimension Q (mm)

190
Dimension R (mm)

316
Size A (mm)

208
Size B (mm)

274
Size C (mm)

40
Size D (mm)

Ø 180
Size E (mm)

160
Size F (mm)

204
Size G (mm)

60
Size H (mm)

350
Size I (mm)

230
Size L (mm)

190
Size N (mm)

277
Size P (mm)

120
