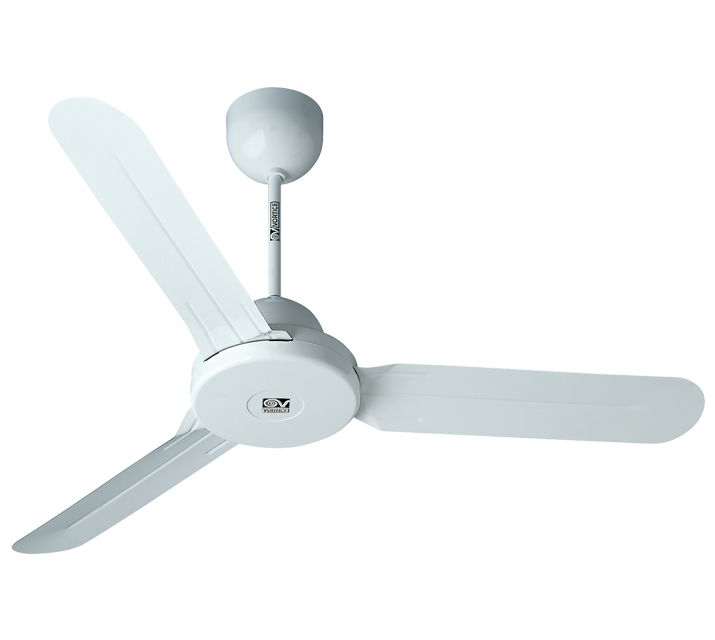

NORDIK 1S 90/36 SENZA SC

Description

• Top and bottom motor covers moulded from heat-resistant and UV-resistant thermoplastic resin (ABS), colour white
• Wiring connections at end of ceiling rod concealed by domes moulded from impact- and UV-resistant PP, colour white.
• Nominal diameter of blades 900 mm.
• Single phase start capacitor motor with external rotor, and shaft turning in ball bearings.
• Maximum air flow: 8,730 m3/h.
• 3 galvanized sheet steel blades powder coated with scratch-resistant polyester, colour white
• Steel ceiling rod with polyester powder coated finish, colour white, length 375 mm
• Bag of accessories containing nuts and bolts required for assembly of blades, ceiling hook and rubber anti-vibration washer.
• Speed selectable by way of control units or Telenordik 5T remote control (optional)

Read full descriptionClose description

Fan diameter

90
Frequency (Hz)

50/60*
Insulation class

I°
Max absorbed current (A)

0,32
Max absorbed power (W)

70
Voltage (V)

220-240
Weight (Kg)

5

giri_minuto

235
Max airflow (m³/h)

8730
Max airflow (m³/min)

145,50
Max flow speed (m/s)

2,65
RPM

235
Service value (m³/min)/W

2,079
Sound power Lw [dB(A)]

44,9

Size A (mm)

Ø 914
Size B (mm)

Ø 230
Size C (mm)

495
