Description
Technical Data Sheet
-
Absorbed power - Cooling mode (W)2230
-
Absorbed power - Heating mode (W)1840
-
Additional refrigerant charge (g/m)22
-
Compressor typeRotativo
-
Condensate draining pipe Ø (mm)26
-
Energy class in cooling modeA++
-
Energy class in heating modeA+
-
Frequency (Hz)50
-
Insulation classI°
-
Max height difference (m)10
-
Max lenght of cooling pipes (m) - I.U.30
-
Max lenght of cooling pipes with standard charge of refrigerant15
-
Max pipe lenght (m)30
-
Nominal current - Cooling mode (A)9,70
-
Nominal current - Heating mode (A)8,00
-
Number of phases (Ph)1
-
Refrigerant pipe Ø (inch)1/4"-5/8"
-
Refrigerant typeR410A
-
Standard refrigerant charge (g)1800
-
Voltage (V)220-240
-
Weight (Kg)35,5
-
Cooling capacity (BTU/h)23.884
-
Cooling capacity (W)7.000
-
COP (Coefficient of Performance)3,8
-
Heating capacity (BTU/h)23.884
-
Heating capacity (W)7.000
-
Indoor operation temperature (cooling/heating) (°C)-15~52/-15~30
-
Outdoor operation temperature (cooling/heating) (°C)16~31
-
Sound power at Mid speed LWA [dB(A)]48
-
Sound power at Min speed LWA [dB(A)]45
-
Sound power at Min speed LWA [dB(A)]55
-
Sound pressure Lp [dB (A)] 1m - mid speed37
-
Sound pressure at 1m at Max speed Lp [dB (A)]44
-
Sound pressure at 1m at Min speed Lp [dB (A)]34
-

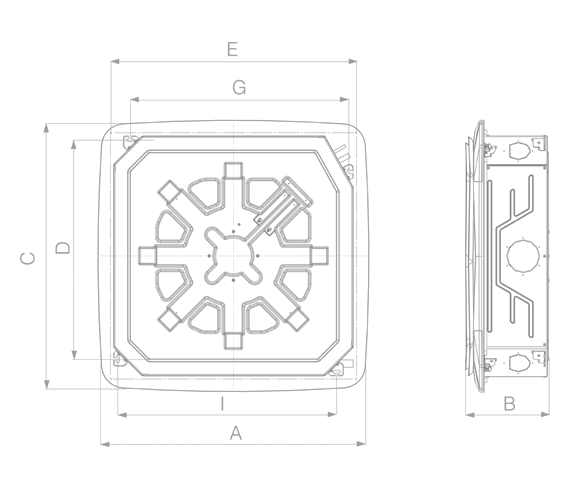

Size A (mm)950
-
Size B (mm)290
-
Size C (mm)950
-
Size D (mm)766
-
Size E (mm)900
-
Size F (mm)900
-
Size G (mm)769
-
Size H (mm)698
-
Size I (mm)766
