Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current at Max speed (A)
    2,03
  • Max absorbed current at Min speed (A)
    0,68
  • Max absorbed power at Max speed (W)
    750
  • Max ambient temperature for continuous operation (°C)
    120
  • Motor class
    F
  • Motor protection IP
    55
  • Power absorbed at 1st speed (W)
    120
  • Voltage (V)
    400
  • Weight (Kg)
    59
  • Max airflow (m³/h)
    5240
  • Max RPM
    1400
  • Min RPM
    710

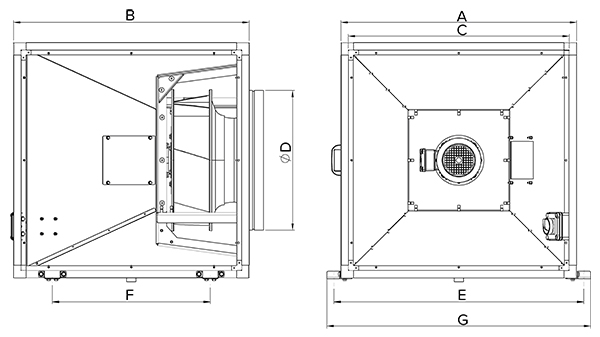

  • Size A (mm)
    730
  • Size B (mm)
    730
  • Size C (mm)
    670
  • Size D (mm)
    448
  • Size E (mm)
    792
  • Size F (mm)
    420
  • Size G (mm)
    842
