Description

Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current at Max speed (A)
    1,13
  • Max absorbed current at Min speed (A)
    0,37
  • Max absorbed power at Max speed (W)
    250
  • Max ambient temperature for continuous operation (°C)
    120
  • Motor class
    F
  • Motor protection IP
    55
  • Power absorbed at 1st speed (W)
    30
  • Voltage (V)
    400
  • Weight (Kg)
    44
  • Max airflow (m³/h)
    3540
  • Max RPM
    1370
  • Min RPM
    705

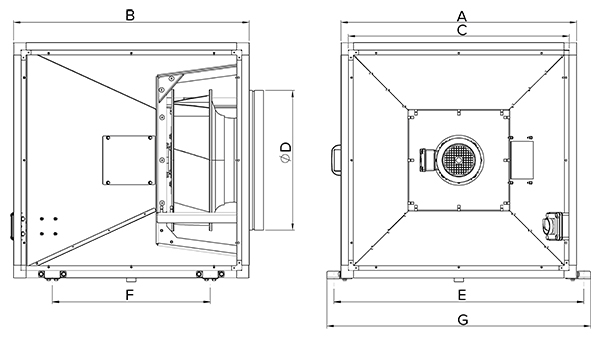

  • Size A (mm)
    650
  • Size B (mm)
    650
  • Size C (mm)
    590
  • Size D (mm)
    398
  • Size E (mm)
    712
  • Size F (mm)
    340
  • Size G (mm)
    762
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
