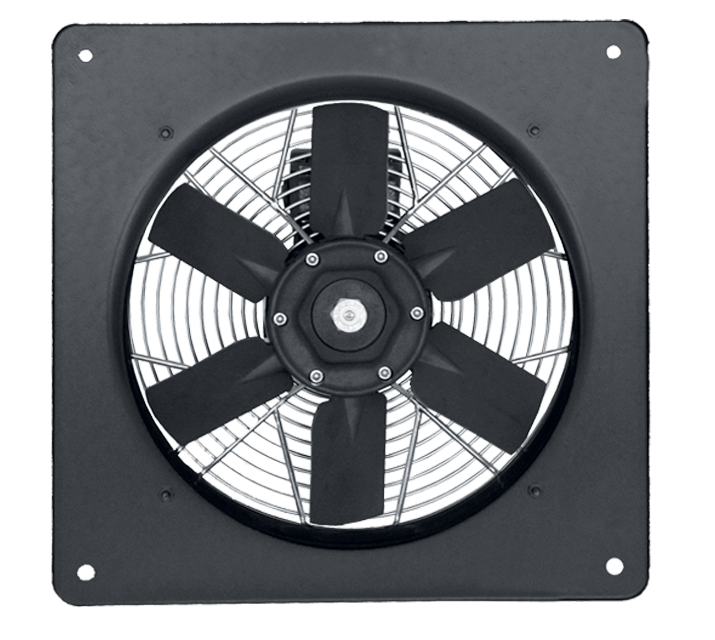

EHP 406 T - Vortice

Description

• Nominal diameter: 400 mm.
• Panel made of galvanized sheet steel, epoxy powder coated, granting long-term resistance against atmospheric agents.
• Protection grid, combining the function of motor bracket, made of electrically welded steel rings. Easy removal simplifies fan maintenance and cleaning.
• 6-pole, three-phase, external rotor AC motor, designed to minimize axial dimensions, insulation class F, IP54 protection.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Electrical connection box with IP65 protection degree.
• Maximum continuous operating temperature: +60°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

0,932
Absorbed current at 400 V (A)

0,536
Frequency (Hz)

50
IP

55
Max absorbed power (W)

115
Max ambient temperature for continuous operation (°C)

60
Max temperature of exhaust air (continuous operation)

60
Motor class

F
Nominal diameter (mm)

400
Number of poles

6

Voltage (V)

230/400
Weight (Kg)

9
Max airflow (l/s)

1624
Max airflow (m³/h)

2760
Max pressure (mmH2O)

5,5
Max pressure (Pa)

53,9
RPM

850
Sound power Lw [dB(A)]

62
Sound pressure Lp [dB (A)] at 3 m

42

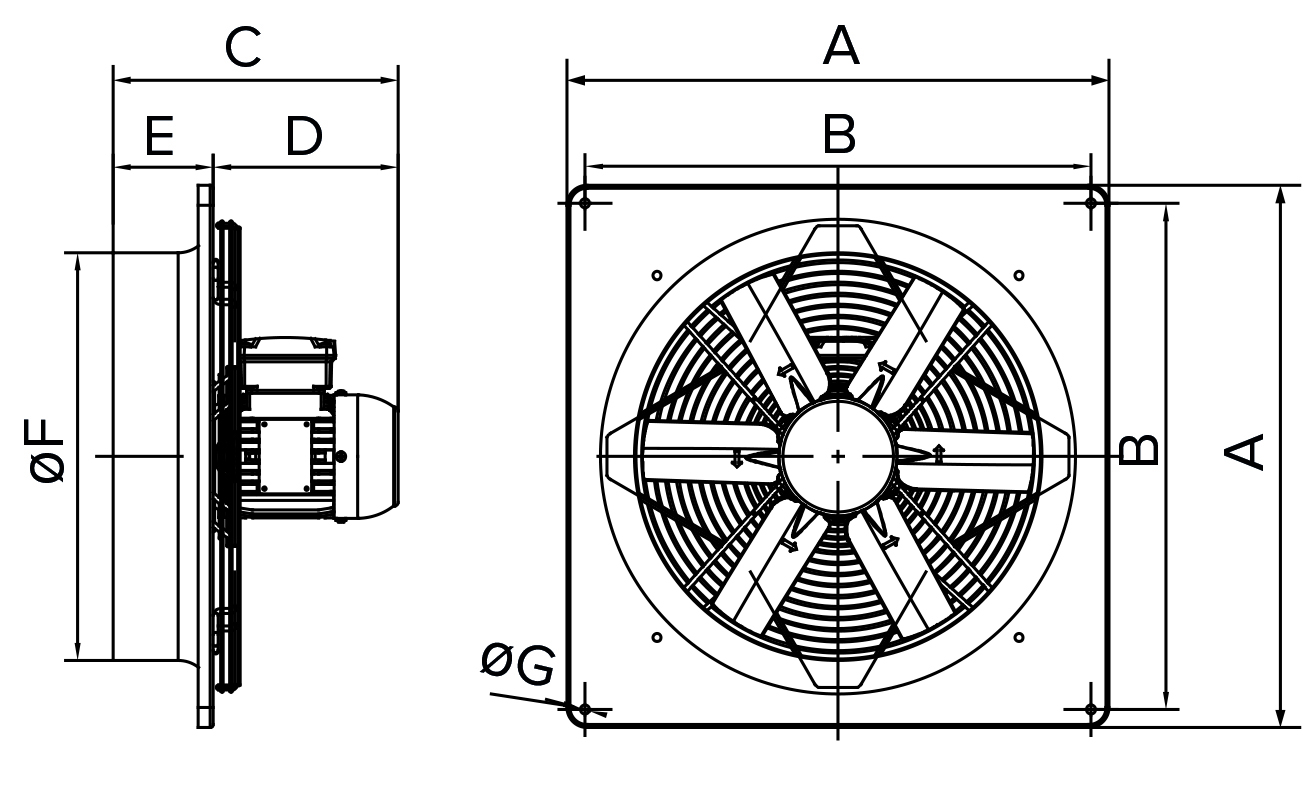

Size A (mm)

540
Size B (mm)

504
Size C (mm)

285
Size D (mm)

185
Size E (mm)

100
Size F (mm)

Ø 406
Size G (mm)

Ø 11
