EHP 352 M - Vortice

Description

• Nominal diameter: 350 mm.
• Panel made of galvanized sheet steel, epoxy powder coated, granting long-term resistance against atmospheric agents.
• Protection grid, combining the function of motor bracket, made of electrically welded steel rings. Easy removal simplifies fan maintenance and cleaning.
• 2-pole, single-phase, external rotor AC motor, designed to minimize axial dimensions, insulation class F, IP55 protection.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Electrical connection box with IP65 protection degree.
• Maximum continuous operating temperature: +50°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

6,71
Frequency (Hz)

50
IP

55
Max absorbed power (W)

992,7
Max ambient temperature for continuous operation (°C)

50
Max temperature of exhaust air (continuous operation)

50
Motor class

F
Nominal diameter (mm)

350
Number of poles

2

Voltage (V)

230
Weight (Kg)

7,5
Max airflow (l/s)

3388
Max airflow (m³/h)

5760
Max pressure (mmH2O)

46,6
Max pressure (Pa)

456,7
RPM

2800
Sound power Lw [dB(A)]

83
Sound pressure Lp [dB (A)] at 3 m

63

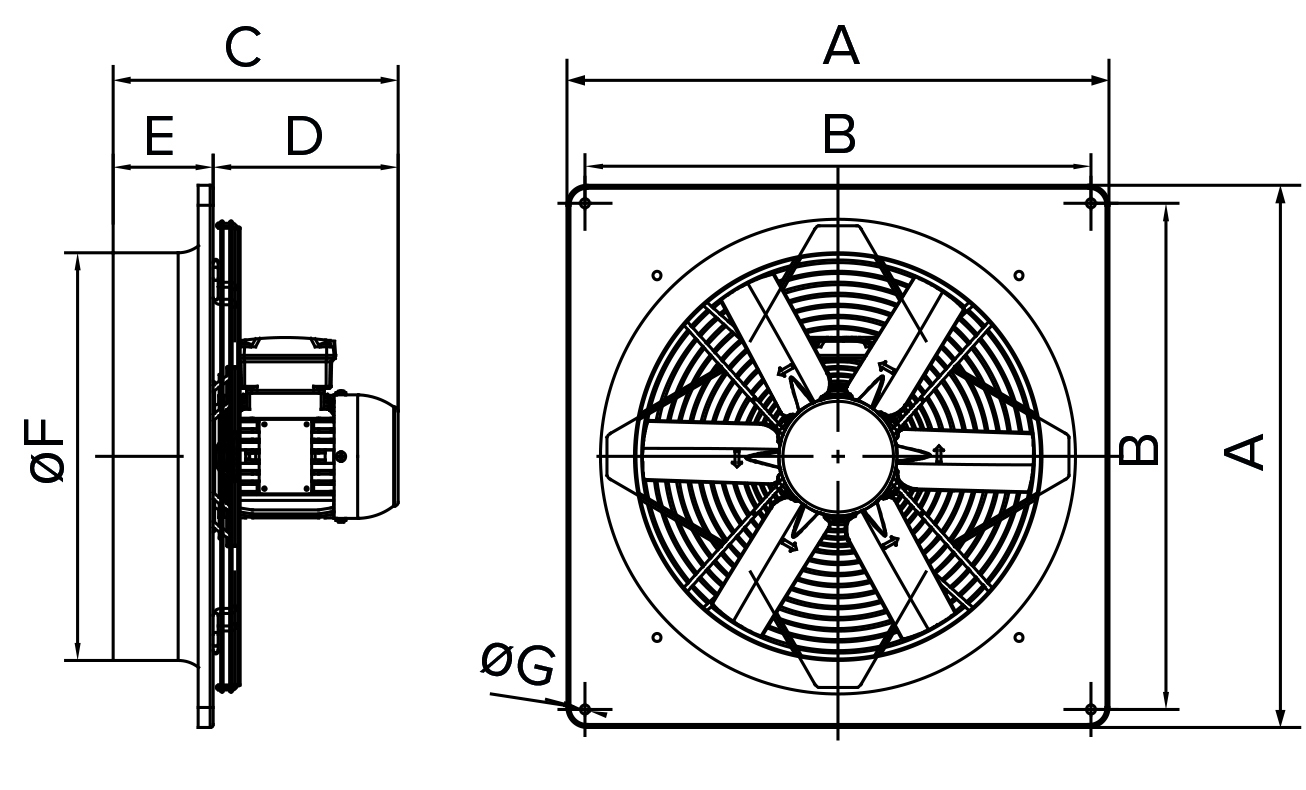

Size A (mm)

460
Size B (mm)

392
Size C (mm)

314
Size D (mm)

228
Size E (mm)

86
Size F (mm)

Ø 366
Size G (mm)

Ø 9
