ELP 304 M - Vortice

Description

• Nominal diameter: 300 mm.
• Panel made of galvanized sheet steel, epoxy powder coated, granting long-term resistance against atmospheric agents.
• Protection grid, combining the function of motor bracket, made of electrically welded steel rings. Easy removal simplifies fan maintenance and cleaning.
• 1-speed, single-phase, external rotor AC motor, designed to minimize axial dimensions, insulation class F, IP42 protection according with DIN40050.
• Impeller with aluminum blades.
• Maximum continuous operating temperature: +50°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

0,7
Frequency (Hz)

50
IP

42
Max absorbed power (W)

76,6
Max ambient temperature for continuous operation (°C)

50
Max temperature of exhaust air (continuous operation)

50
Motor class

F
Nominal diameter (mm)

300
Number of poles

4

Voltage (V)

230
Weight (Kg)

3,5
Max airflow (l/s)

714
Max airflow (m³/h)

1214
Max pressure (mmH2O)

3,9
Max pressure (Pa)

38,2
RPM

1260
Sound power Lw [dB(A)]

62
Sound pressure Lp [dB (A)] at 3 m

42

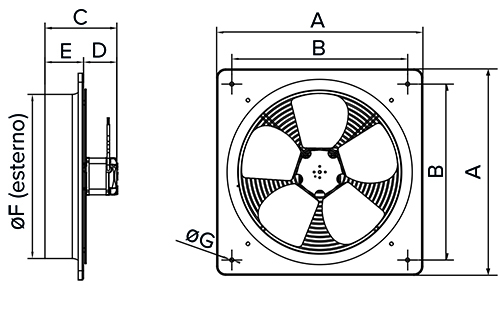

Size A (mm)

404
Size B (mm)

337
Size C (mm)

156
Size D (mm)

74
Size E (mm)

82
Size F (mm)

Ø 308
Size G (mm)

Ø 9
