Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 335 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
Read full descriptionClose description
Accessorio_7

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,15
  • Max absorbed power (W)
    29
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    160
  • Ø Discharge hole (mm)
    156
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,1
  • Max airflow (l/s)
    93,1
  • Max airflow (m³/h)
    335
  • Max pressure (mmH2O)
    6
  • Max pressure (Pa)
    59
  • Pressure at 1st speed (mmH20)
    6
  • RPM
    2100
  • Sound pressure Lp [dB (A)] at 3 m
    46

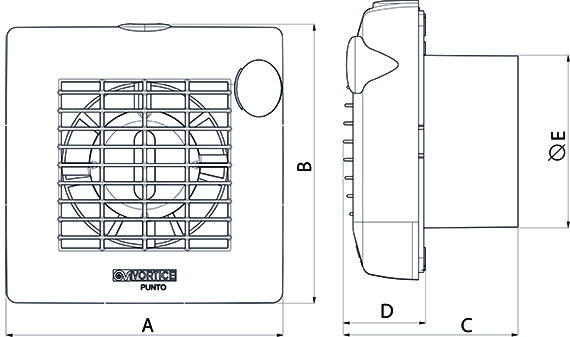

  • Size A (mm)
    214
  • Size B (mm)
    215
  • Size C (mm)
    117
  • Size D (mm)
    47
  • Size E (mm)
    Ø 156
