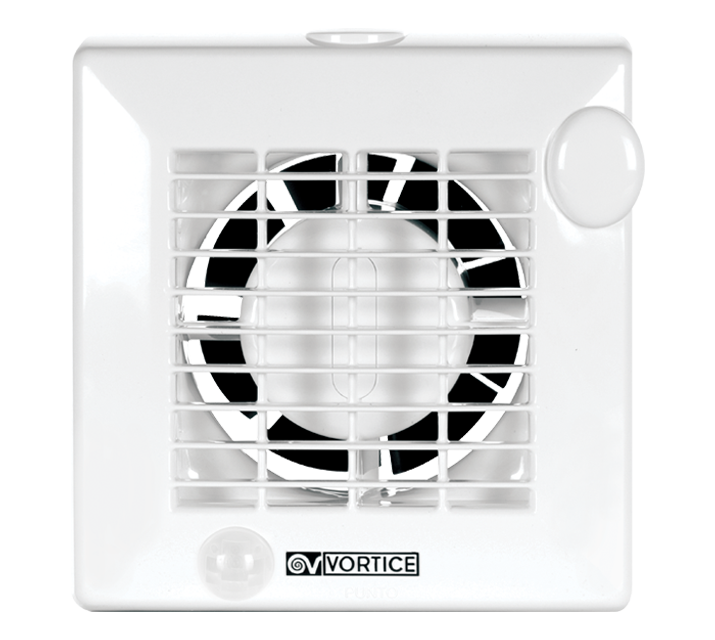

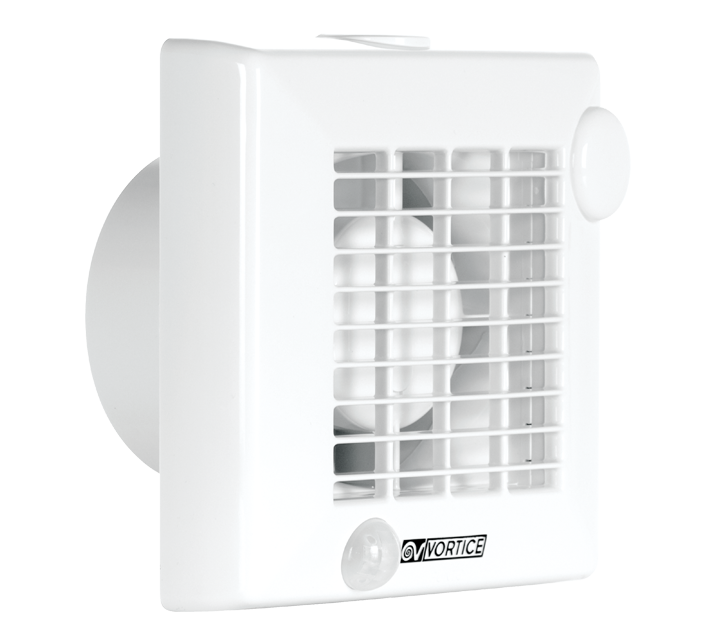

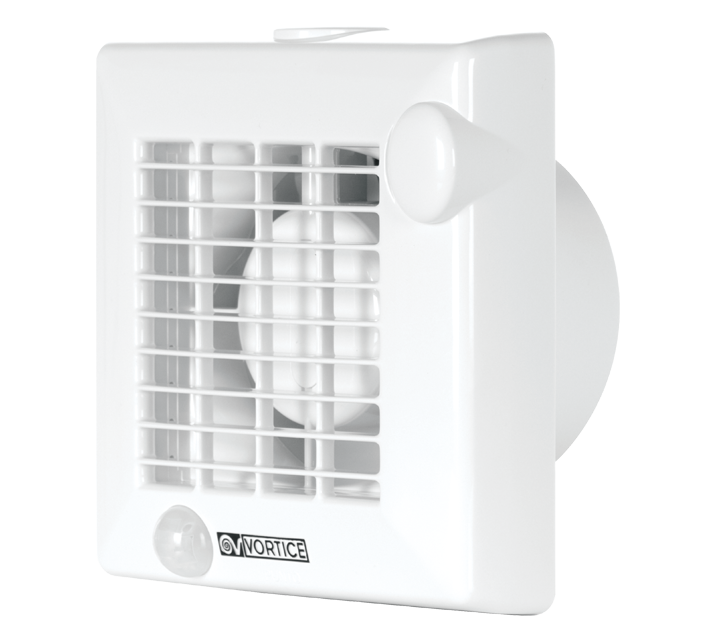

Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 120 mm.

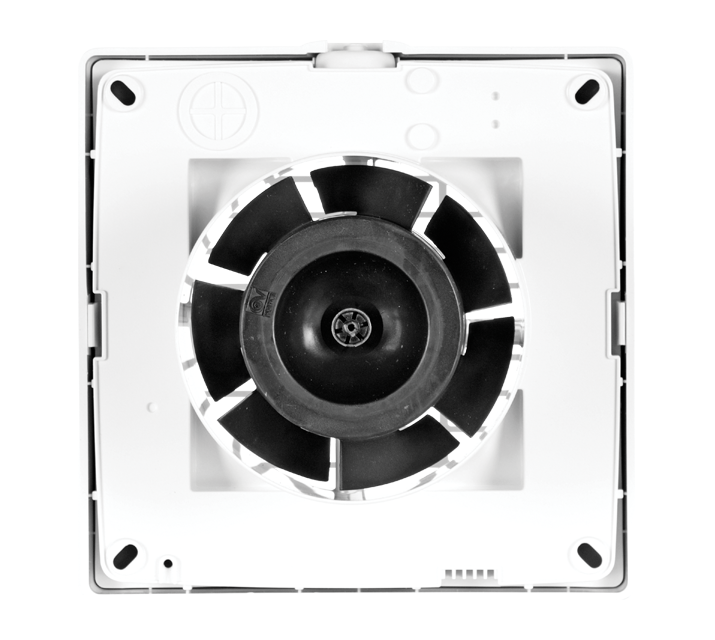

• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 175 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
• Equipped with system by which the louvres of the grille are opened and closed automatically.
• Nominal diameter 120 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 175 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.
• Equipped with system by which the louvres of the grille are opened and closed automatically.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,12
-
Max absorbed power (W)20
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)120
-
Ø Discharge hole (mm)120
-
Voltage (V)220-240
-
Weight (Kg)0,8
-
Max airflow (l/s)48,6
-
Max airflow (m³/h)175
-
Max pressure (mmH2O)4,5
-
Max pressure (Pa)44
-
Max RPM2100
-
RPM2100
-
Sound pressure Lp [dB (A)] at 3 m39,5
-

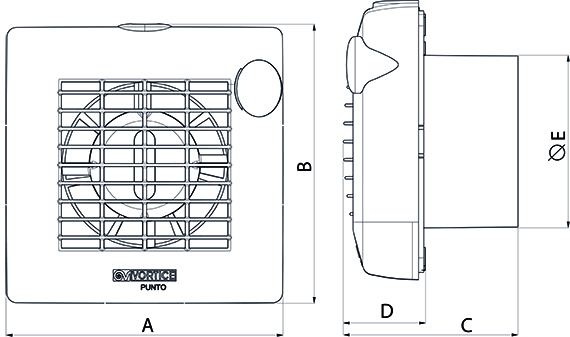

Size A (mm)179
-
Size B (mm)181
-
Size C (mm)110
-
Size D (mm)47
-
Size E (mm)Ø 119
