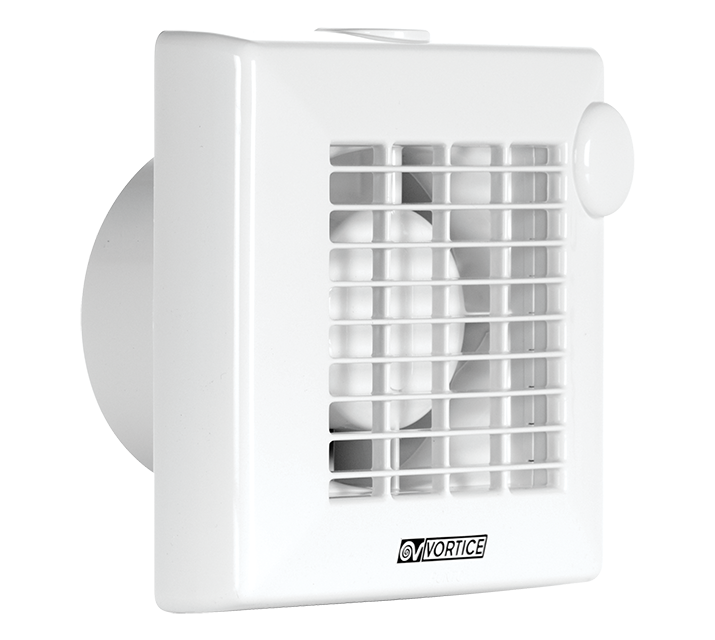

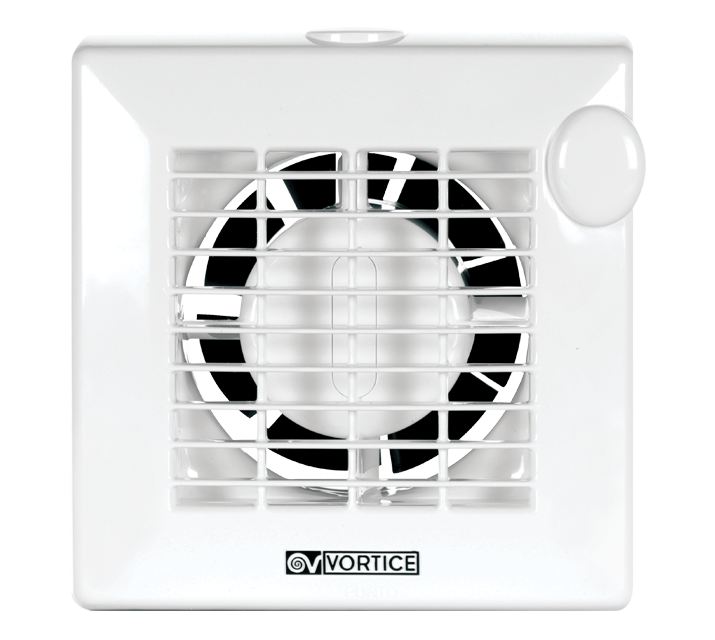

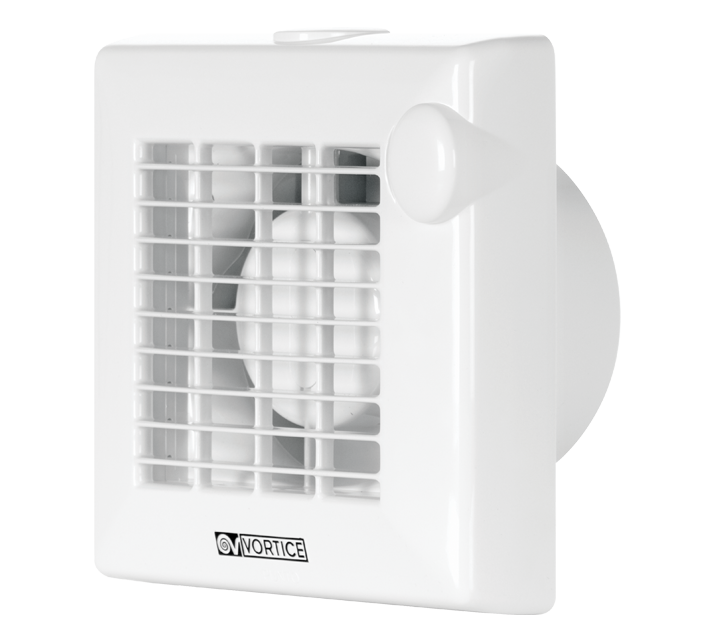

M 90/3,5" - Vortice

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 90 mm.

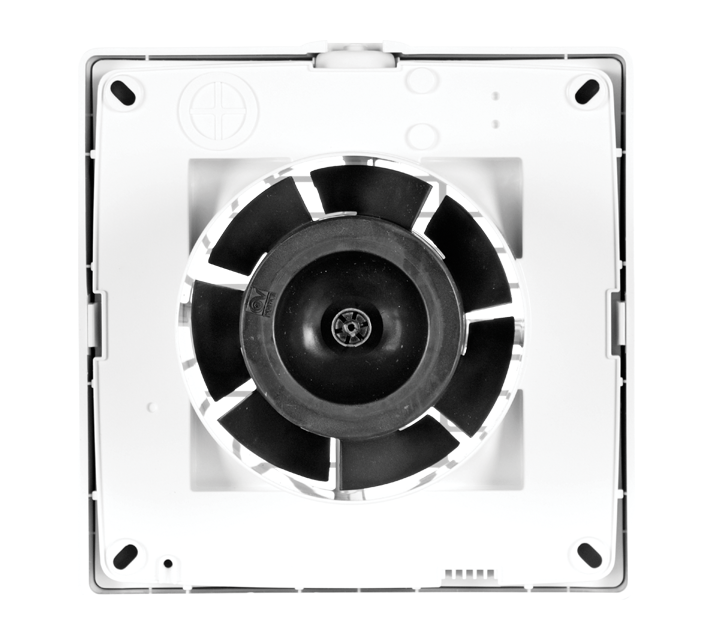

• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 70 m3/h.
• Vortice speed controller.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current (A)

0,1
Max absorbed power (W)

18
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

90
Ø Discharge hole (mm)

90

Voltage (V)

220-240
Weight (Kg)

0,55
Max airflow (l/s)

19
Max airflow (m³/h)

70
Max pressure (mmH2O)

2,3
Max pressure (Pa)

23
RPM

2500
Sound pressure Lp [dB (A)] at 3 m

39

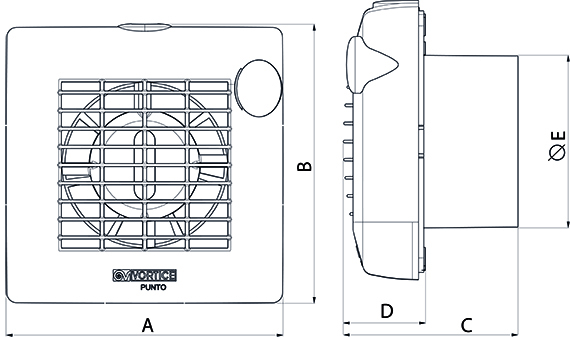

Size A (mm)

159
Size B (mm)

160
Size C (mm)

100
Size D (mm)

47
Size E (mm)

Ø 92,5
