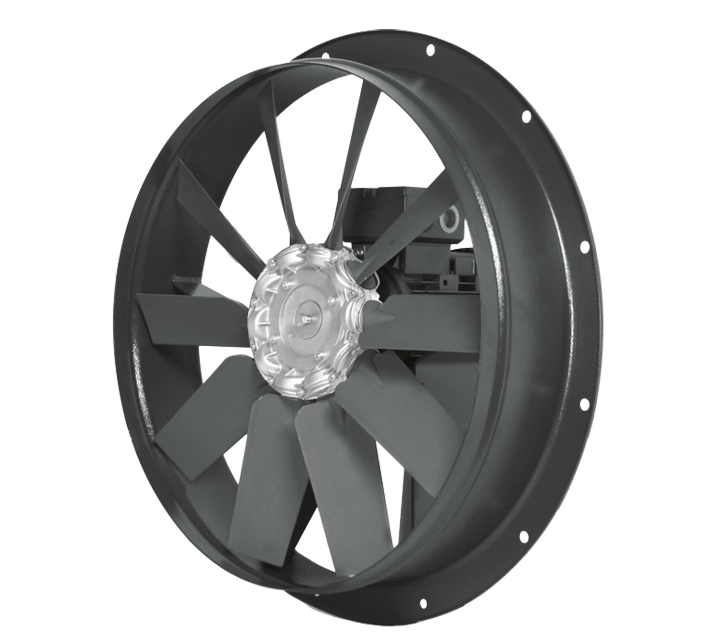

Description

• Nominal diameter: 560 mm.
• Reinforced circular panel integrating the shaped inlet cone, epoxy powder coated, granting long-term resistance against atmospheric agents.
• 4-pole, three-phase, AC motor, insulation class F, IP55 protection. Power supply: 230 - 400 V / 50 Hz.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Maximum continuous operating temperature: +60°C.
Read full descriptionClose description

Technical Data Sheet

  • Absorbed current at 230 V (A)
    2,92
  • Absorbed current at 400 V (A)
    1,68
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    1650,5
  • Max ambient temperature for continuous operation (°C)
    60
  • Max temperature of exhaust air (continuous operation)
    60
  • Motor class
    F
  • Nominal diameter (mm)
    560
  • Number of poles
    4
  • Voltage (V)
    230/400
  • Weight (Kg)
    36
  • Max airflow (l/s)
    5962
  • Max airflow (m³/h)
    10136
  • Max pressure (mmH2O)
    31,9
  • Max pressure (Pa)
    312,6
  • RPM
    1410
  • Sound power Lw [dB(A)]
    87,42
  • Sound pressure Lp [dB (A)] at 3 m
    67,42

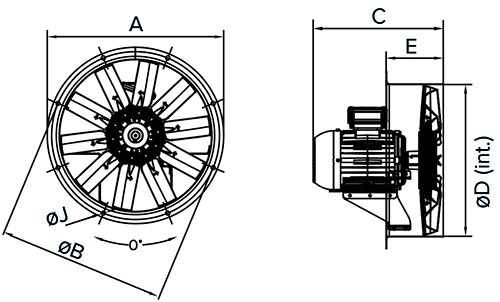

  • Size A (mm)
    Ø 646
  • Size B (mm)
    Ø 620
  • Size C (mm)
    423
  • Size D (mm)
    Ø 559
  • Size E (mm)
    175
  • Size J (mm)
    Ø 12
  • Size O (mm)
    12x30°
