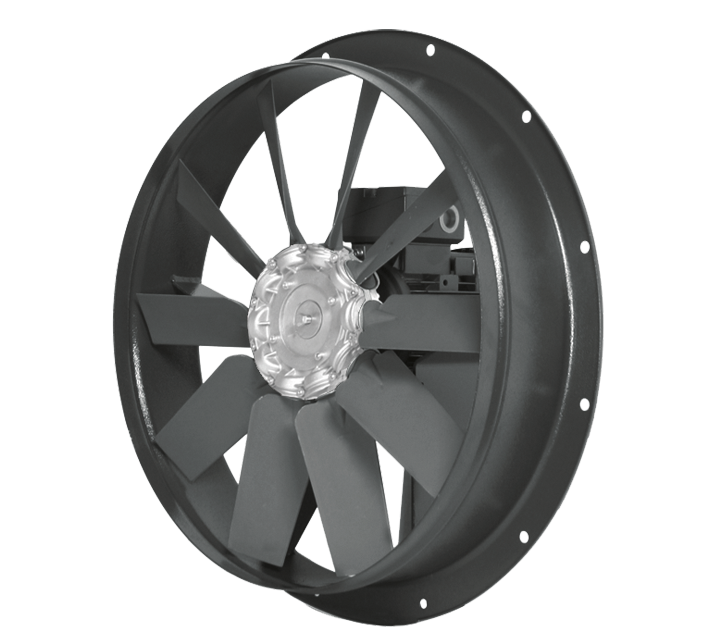

MHP 504 T (A:6) 0,37kW 40°

Description

• Nominal diameter: 500 mm.
• Reinforced circular panel integrating the shaped inlet cone, epoxy powder coated, granting long-term resistance against atmospheric agents.
• 4-pole, three-phase, AC motor, insulation class F, IP55 protection. Power supply: 230 - 400 V / 50 Hz.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Maximum continuous operating temperature: +60°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

1,77
Absorbed current at 400 V (A)

1,02
Frequency (Hz)

50
IP

55
Max absorbed power (W)

1019,4
Max ambient temperature for continuous operation (°C)

60
Max temperature of exhaust air (continuous operation)

60
Motor class

F
Nominal diameter (mm)

500
Number of poles

4

Voltage (V)

230/400
Weight (Kg)

23,1
Max airflow (l/s)

4782
Max airflow (m³/h)

8130
Max pressure (mmH2O)

16,7
Max pressure (Pa)

163,7
RPM

1370
Sound power Lw [dB(A)]

79,8
Sound pressure Lp [dB (A)] at 3 m

59,8

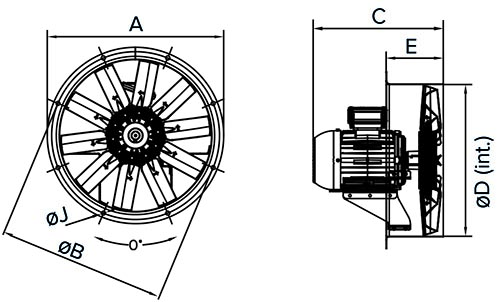

Size A (mm)

Ø 600
Size B (mm)

Ø 560
Size C (mm)

421
Size D (mm)

Ø 504
Size E (mm)

170
Size J (mm)

Ø 12
Size O (mm)

12x30°
