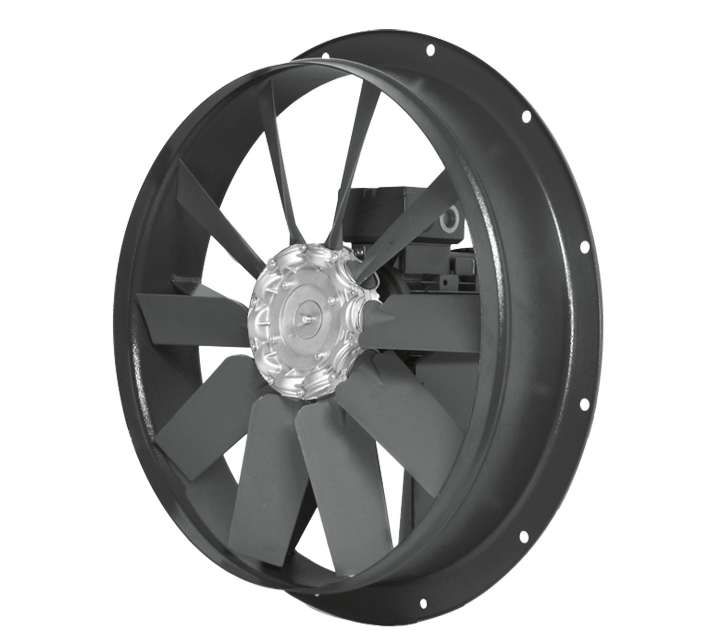

Description

• Nominal diameter: 500 mm.
• Reinforced circular panel integrating the shaped inlet cone, epoxy powder coated, granting long-term resistance against atmospheric agents.
• 4-pole, single-phase, AC motor, insulation class F, IP55 protection. Power supply: 230 V / 50 Hz.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Maximum continuous operating temperature: +50°C.
Read full descriptionClose description

Technical Data Sheet

  • Absorbed current at 230 V (A)
    2,82
  • Frequency (Hz)
    50
  • IP
    55
  • Max absorbed power (W)
    584,9
  • Max ambient temperature for continuous operation (°C)
    50
  • Max temperature of exhaust air (continuous operation)
    50
  • Motor class
    F
  • Nominal diameter (mm)
    500
  • Number of poles
    4
  • Voltage (V)
    230
  • Weight (Kg)
    23,4
  • Max airflow (l/s)
    4782
  • Max airflow (m³/h)
    8130
  • Max pressure (mmH2O)
    16,7
  • Max pressure (Pa)
    163,7
  • RPM
    1400
  • Sound power Lw [dB(A)]
    79,8
  • Sound pressure Lp [dB (A)] at 3 m
    59,8

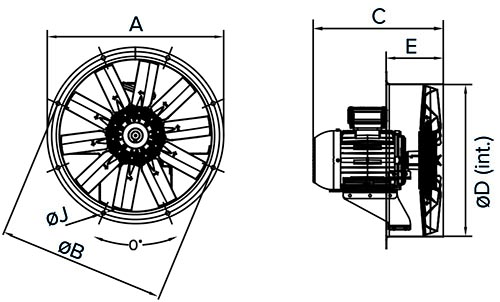

  • Size A (mm)
    Ø 600
  • Size B (mm)
    Ø 560
  • Size C (mm)
    421
  • Size D (mm)
    Ø 504
  • Size E (mm)
    170
  • Size J (mm)
    Ø 12
  • Size O (mm)
    8x45°
