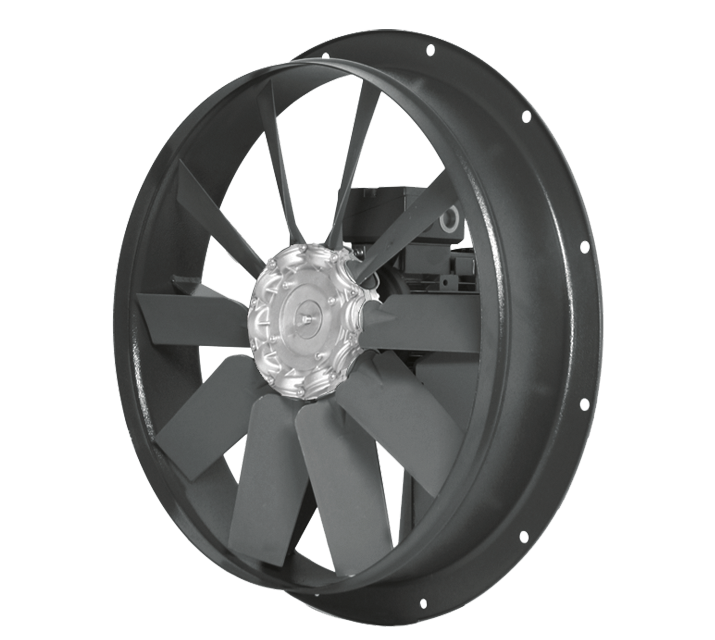

MHP 454 M (A:6) 0,25kW 40°

Description

• Nominal diameter: 450 mm.
• Reinforced circular panel integrating the shaped inlet cone, epoxy powder coated, granting long-term resistance against atmospheric agents.
• 4-pole, single-phase, AC motor, insulation class F, IP55 protection. Power supply: 230 V / 50 Hz.
• Variable pitch impeller with blades made of polyamide reinforced with fiberglass.
• Maximum continuous operating temperature: +50°C.

Read full descriptionClose description

Absorbed current at 230 V (A)

1,93
Frequency (Hz)

50
IP

55
Max absorbed power (W)

438,1
Max ambient temperature for continuous operation (°C)

50
Max temperature of exhaust air (continuous operation)

50
Motor class

F
Nominal diameter (mm)

450
Number of poles

4

Voltage (V)

230
Weight (Kg)

18,3
Max airflow (l/s)

3735
Max airflow (m³/h)

6350
Max pressure (mmH2O)

14,5
Max pressure (Pa)

142,1
RPM

1400
Sound power Lw [dB(A)]

78
Sound pressure Lp [dB (A)] at 3 m

58

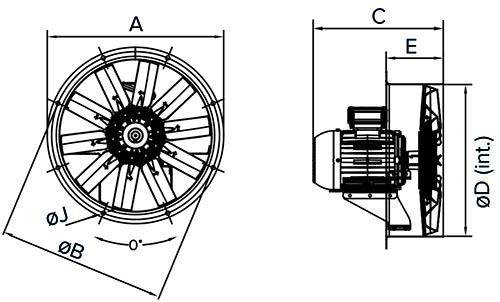

Size A (mm)

Ø 525
Size B (mm)

Ø 500
Size C (mm)

418
Size D (mm)

Ø 452
Size E (mm)

170
Size J (mm)

Ø 12
Size O (mm)

8x45°
