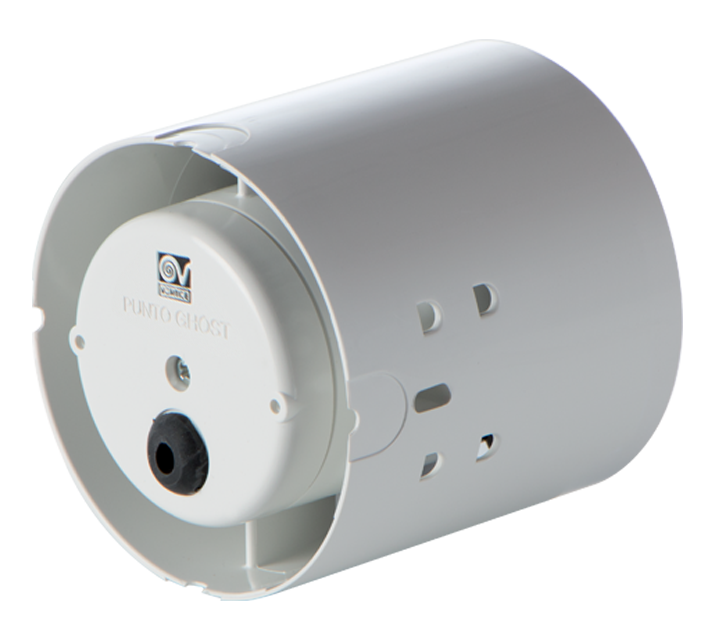

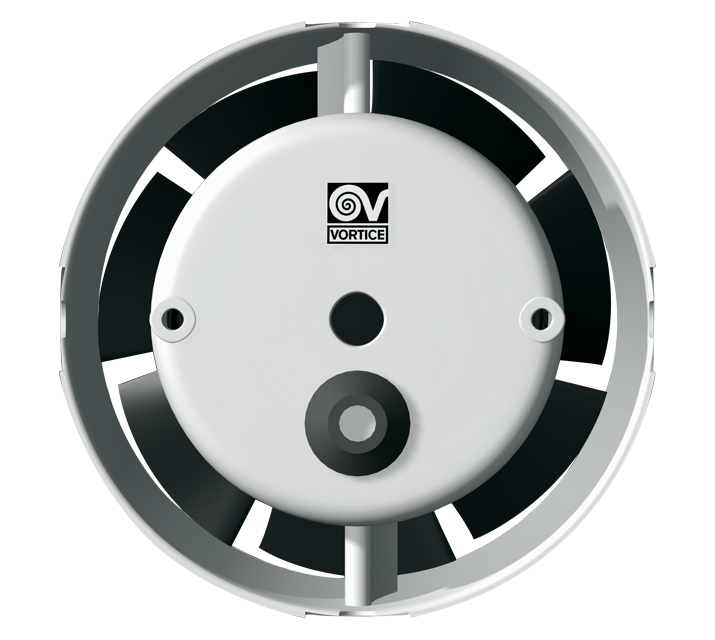

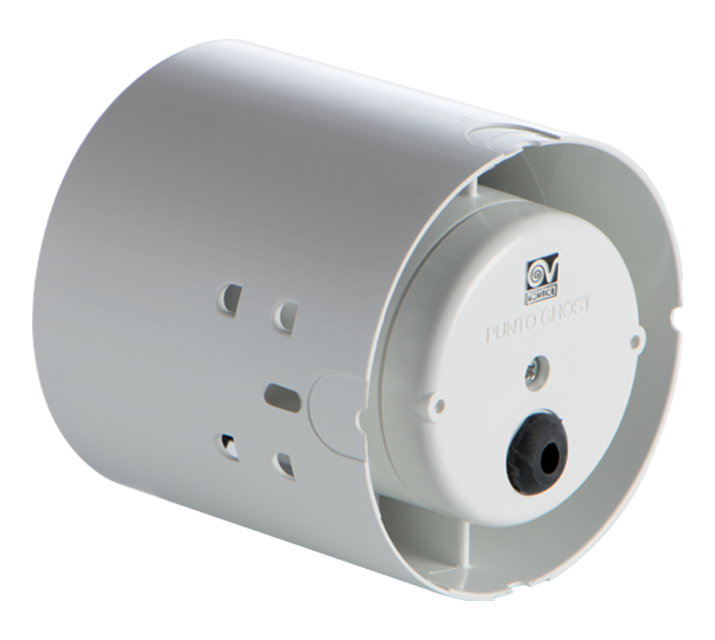

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL), coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 320 m3/h.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full descriptionClose description
Accessorio_5
Accessorio_6
Accessorio_7

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current (A)
    0,18
  • Max absorbed power (W)
    29
  • Max ambient temperature for continuous operation (°C)
    50
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,80
  • Max airflow (l/s)
    88,9
  • Max airflow (m³/h)
    320
  • Max pressure (mmH2O)
    7,0
  • Max pressure (Pa)
    69
  • RPM
    2200
  • Sound pressure Lp [dB (A)] at 3 m
    48

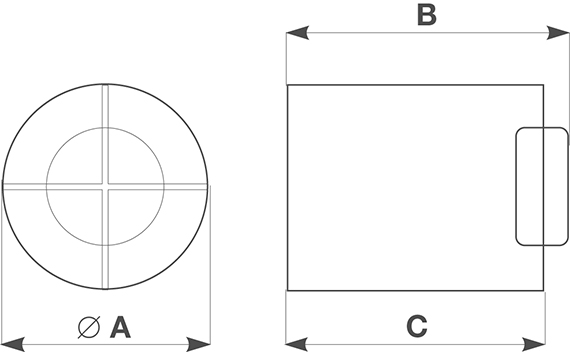

  • Size A (mm)
    Ø 155
  • Size B (mm)
    114,5
  • Size C (mm)
    107
