Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 320 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 320 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,18
-
Max absorbed power (W)29
-
Max ambient temperature for continuous operation (°C)50
-
Voltage (V)220-240
-
Weight (Kg)0,80
-
Max airflow (l/s)88,9
-
Max airflow (m³/h)320
-
Max pressure (mmH2O)7,0
-
Max pressure (Pa)69
-
RPM2200
-
Sound pressure Lp [dB (A)] at 3 m48
-

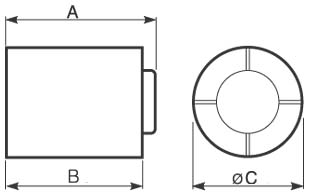

Size A (mm)Ø 155
-
Size B (mm)110
-
Size C (mm)107
