Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 120 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 160 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
• Nominal diameter 120 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 160 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,12
-
Max absorbed power (W)20
-
Max ambient temperature for continuous operation (°C)50
-
Voltage (V)220-240
-
Weight (Kg)0,56
-
Max airflow (l/s)44,4
-
Max airflow (m³/h)160
-
Max pressure (mmH2O)4,5
-
Max pressure (Pa)44
-
RPM2250
-
Sound pressure Lp [dB (A)] at 3 m43
-

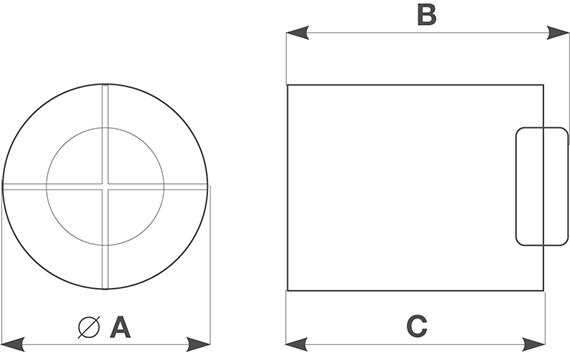

Size A (mm)Ø 119
-
Size B (mm)103
-
Size C (mm)100
