Description
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 80 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 80 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0,10
-
Max absorbed power (W)18
-
Max ambient temperature for continuous operation (°C)40
-
Voltage (V)220-240
-
Weight (Kg)0,43
-
Max airflow (l/s)22,2
-
Max airflow (m³/h)80
-
Max pressure (mmH2O)2,6
-
Max pressure (Pa)25
-
RPM2415
-
Sound pressure Lp [dB (A)] at 3 m39
-

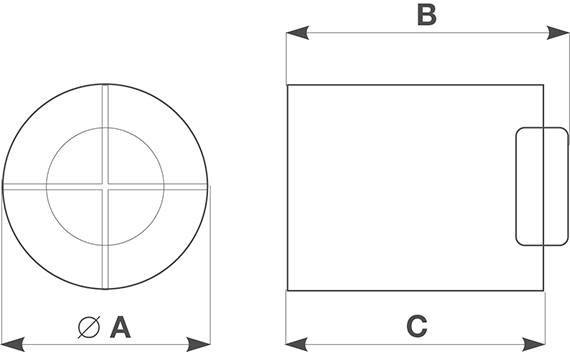

Size A (mm)Ø 99
-
Size B (mm)92
-
Size C (mm)89
