Description
• Front cover made of UV-resistant plastic rated V0, colour white.
• Plastic wall mounting flange (PP).
• Soap dispensed by peristaltic pump.
• Electronic control system equipped with infrared sensor detecting the position of the hands; activation distance between hands and sensor adjustable by way of internal trimmer.
• Removable liquid soap container.
• Drip collector.
• Overflow-proof: in the event of the liquid soap container being filled too full, there will be no risk of short-circuits occurring.
• IMQ safety certification.
• Plastic wall mounting flange (PP).
• Soap dispensed by peristaltic pump.
• Electronic control system equipped with infrared sensor detecting the position of the hands; activation distance between hands and sensor adjustable by way of internal trimmer.
• Removable liquid soap container.
• Drip collector.
• Overflow-proof: in the event of the liquid soap container being filled too full, there will be no risk of short-circuits occurring.
• IMQ safety certification.
Technical Data Sheet
-
Detergent container capacity (l)0,5
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed power (W)6
-
Motor power (W)6
-
Shock resistance (IK)09
-
Voltage (V)220-240
-
Weight (Kg)1,2
-
Power in stand-by mode (W)0,3838
-

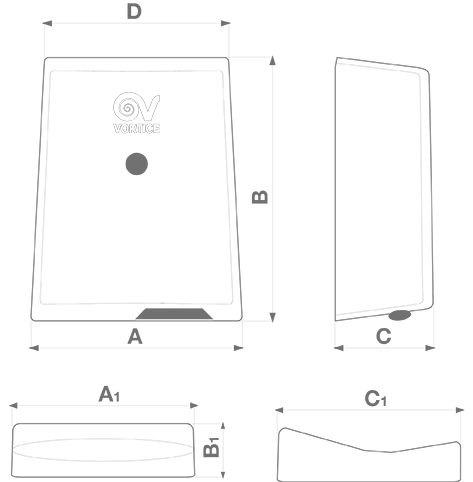

Size A (mm)181
-
Size B (mm)257
-
Size C (mm)91
-
Size D (mm)159
-
Size E (mm)137
-
Size F (mm)50
-
Size G (mm)142
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
