Description

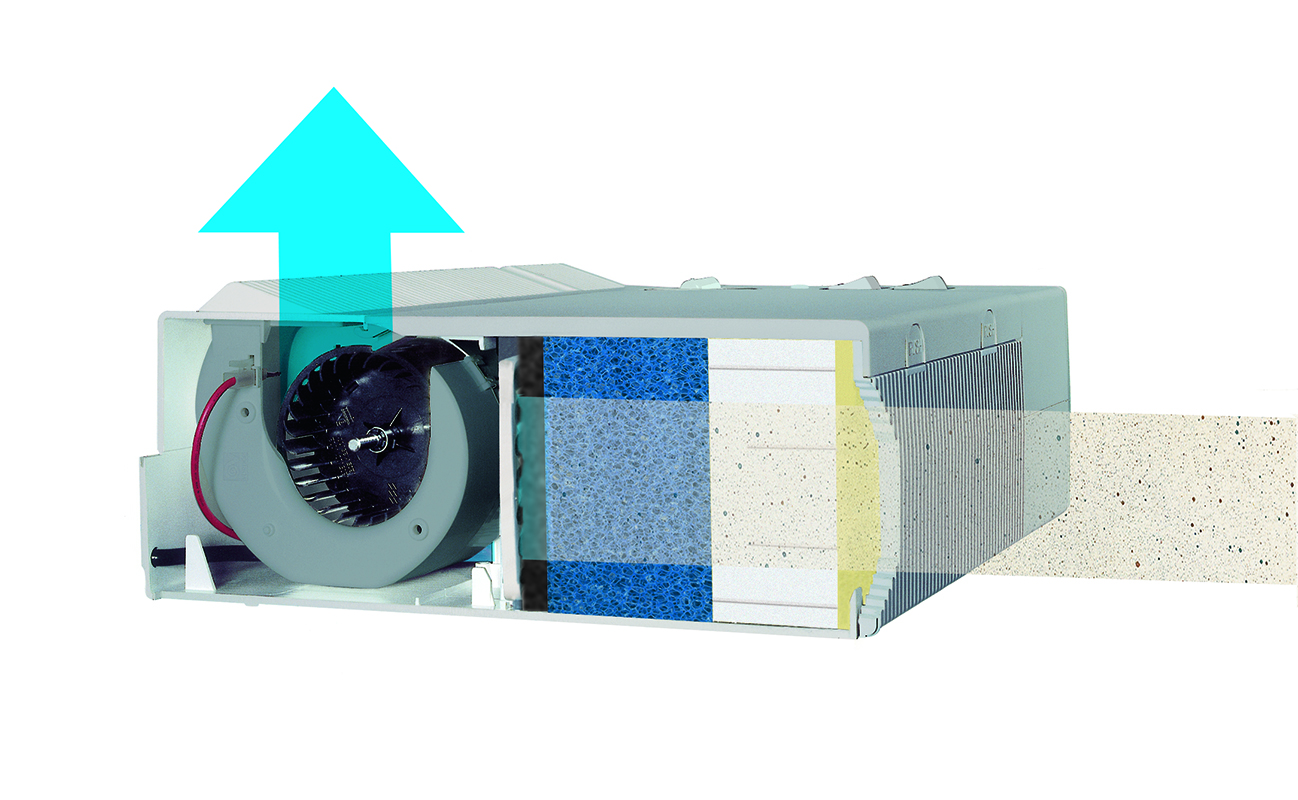

• Upper casing, filter cover, sides, grille and base moulded from impact-resistant thermoplastic material, colour grey.
• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Washable polyester-polyurethane prefilter.

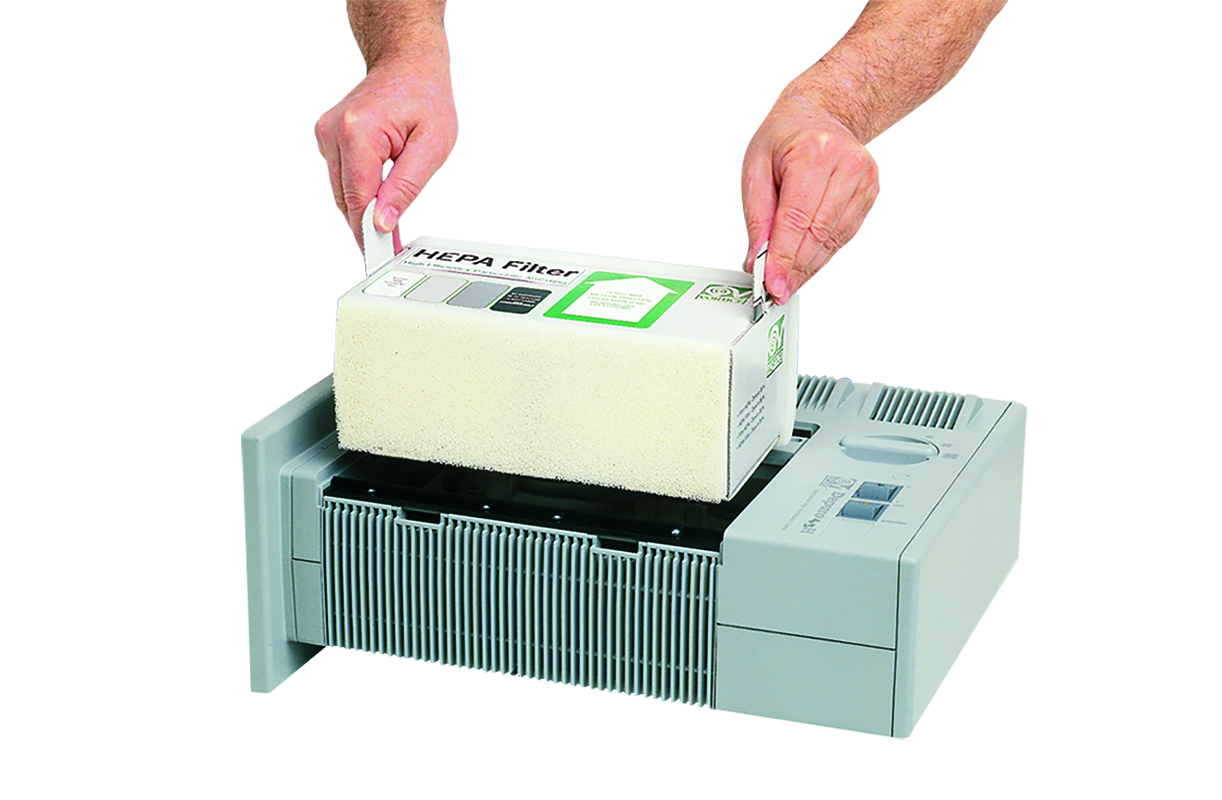

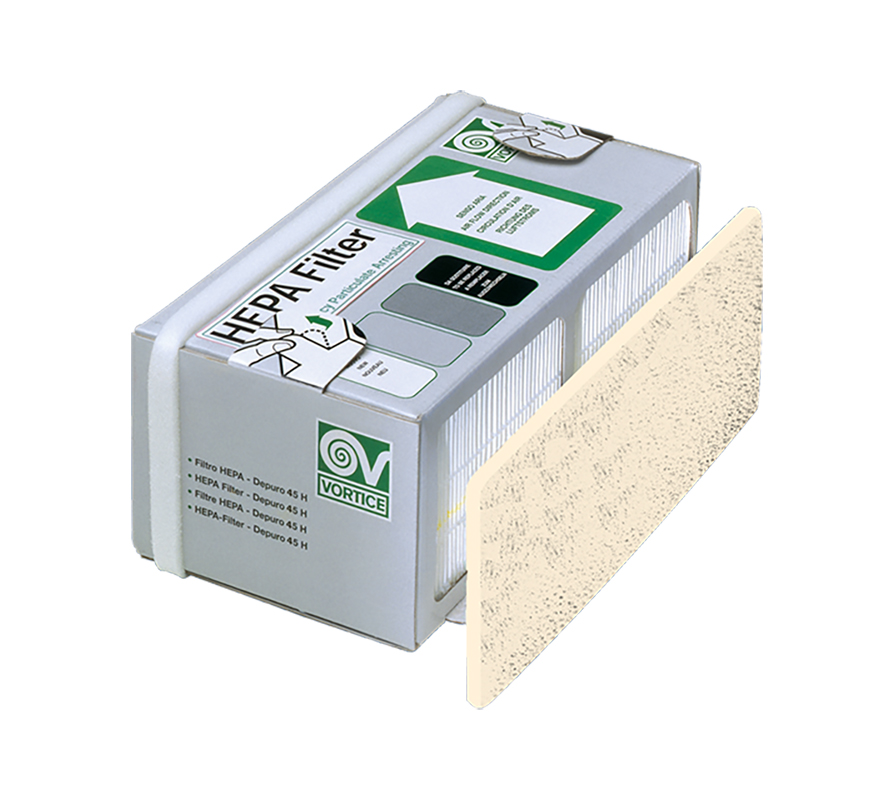

• HEPA H10 filter
• Electrostatic double layer filter impregnated with activated carbon.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.

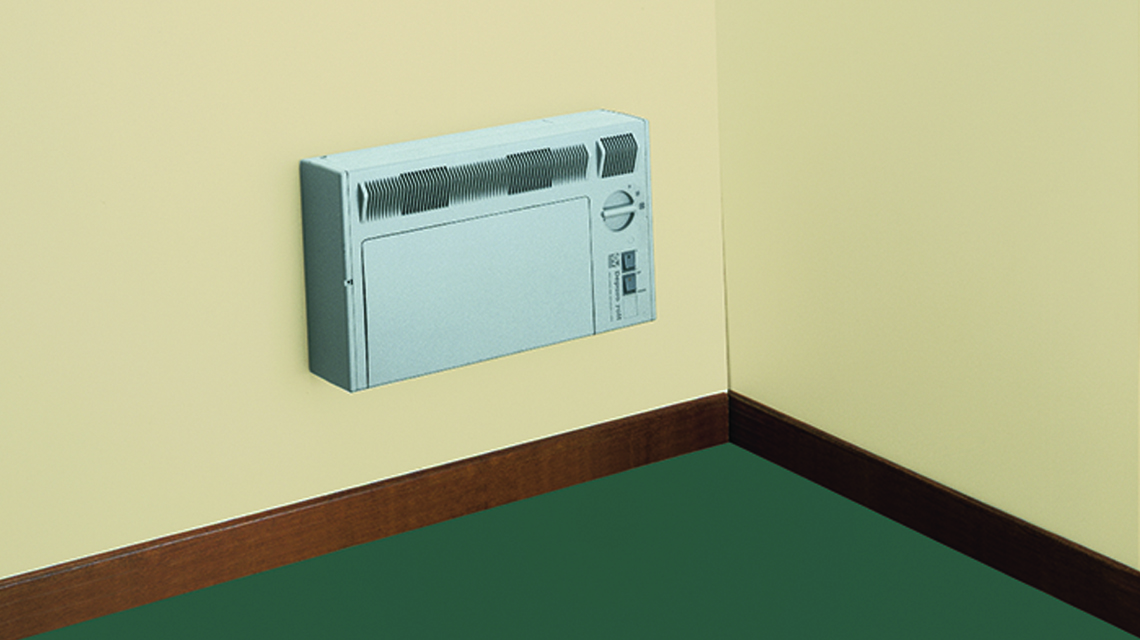

• Base interchangeable with one side to allow floor-standing operation.
• Power cord with moulded plug.
• IMQ safety certification.
• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Washable polyester-polyurethane prefilter.
• HEPA H10 filter
• Electrostatic double layer filter impregnated with activated carbon.
• Ionizing electrodes selectable by way of dedicated switch.
• On/off switch.
• Fan speed controlled by 3-position rotary switch.
• Base interchangeable with one side to allow floor-standing operation.
• Power cord with moulded plug.
• IMQ safety certification.
Certifications
-
Download
CE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
Max absorbed current (A)0,27
-
Max absorbed power (W)30
-
Number of speeds3
-
Voltage (V)230
-
Weight (Kg)4,0
-
Airflow at 1st speed (m³/h)30
-
Max airflow at Max speed (m³/h)60
-
Sound power at Mid speed LWA [dB(A)]50
-
Sound power at Min speed LWA [dB(A)]41
-
Sound power at Min speed LWA [dB(A)]53
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed27,5
-
Sound pressure at 3m at Max speed Lp [dB (A)]39,1
-
Sound pressure at 3m at Min speed Lp [dB (A)]35,7
-
Size A (mm)358
-
Size B (mm)180
-
Size C (mm)437
-
Size D (mm)315
-
Size E (mm)120
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
