Code 25022
VORTRONIC 35 RF
Air cleaners + ionisers with electronically controlled electrostatic cell
Description

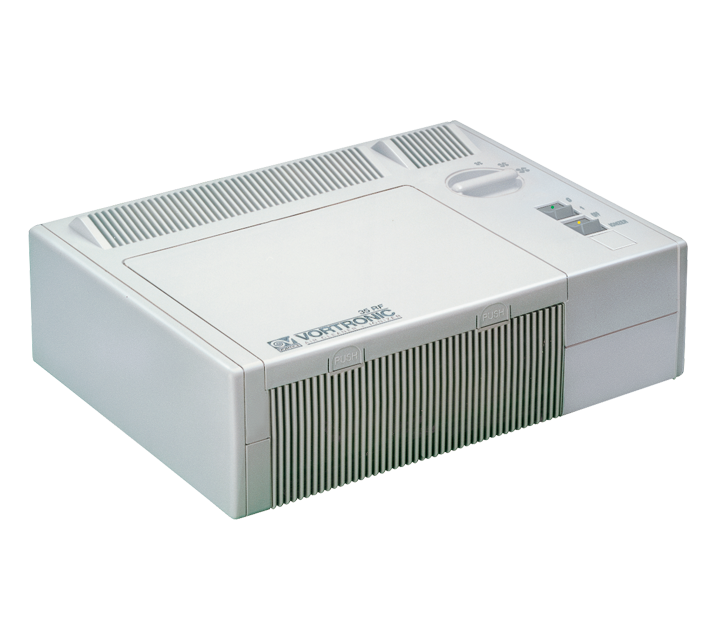

• Casing, filter cover, sides, grille and base moulded from impact-resistant thermoplastic material, colour light grey.

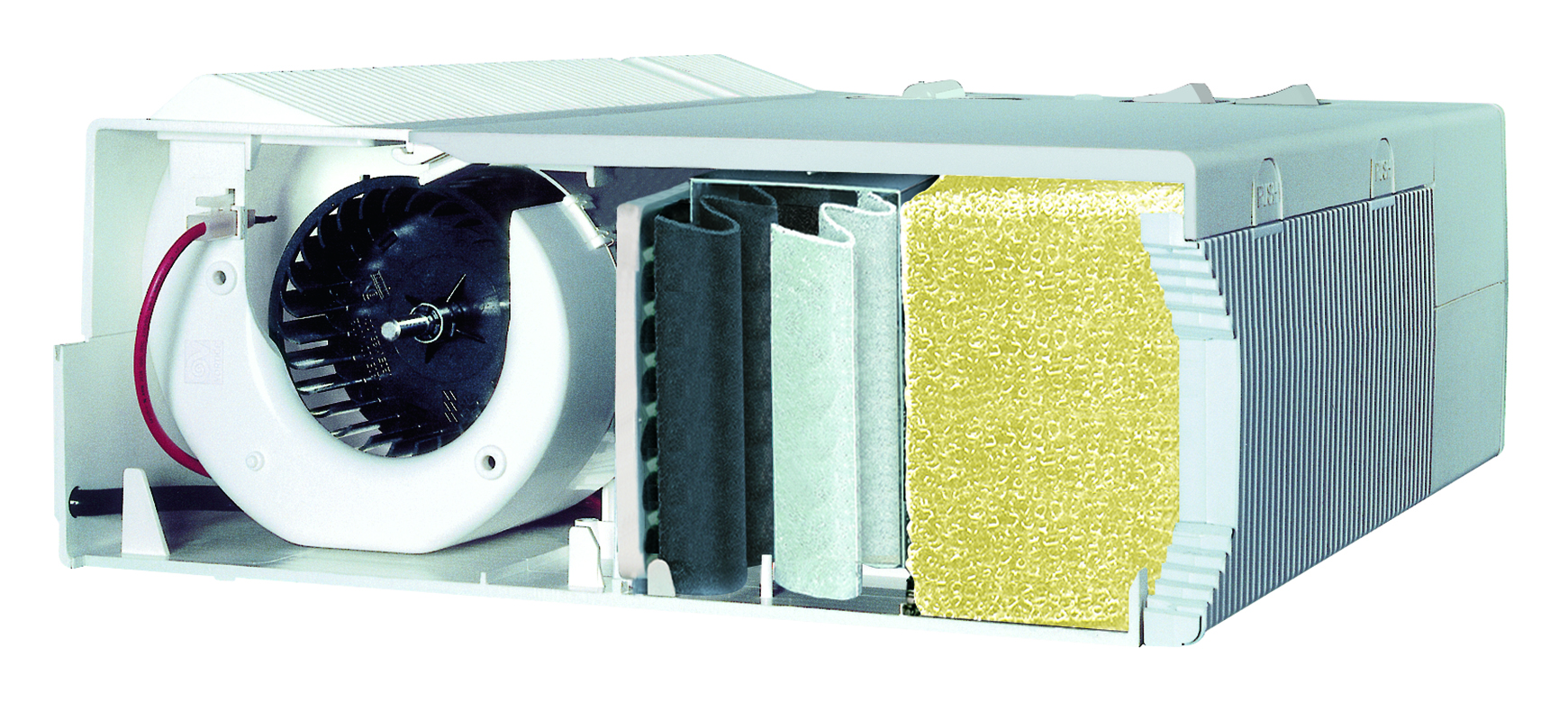

• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.

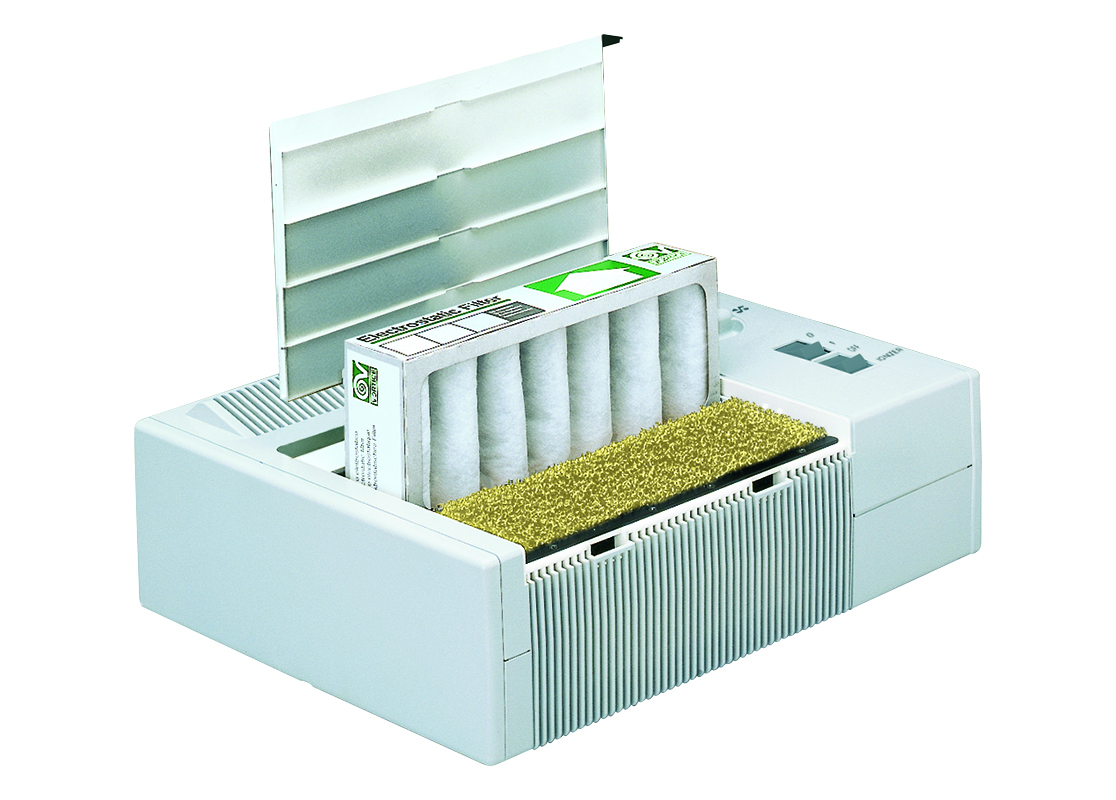

• Washable polyester-polyurethane prefilter.
• Electrostatic double layer filter impregnated with activated carbon.
• Ionizing electrodes selectable by means of a switch located on the top of the casing
• On/off switch.

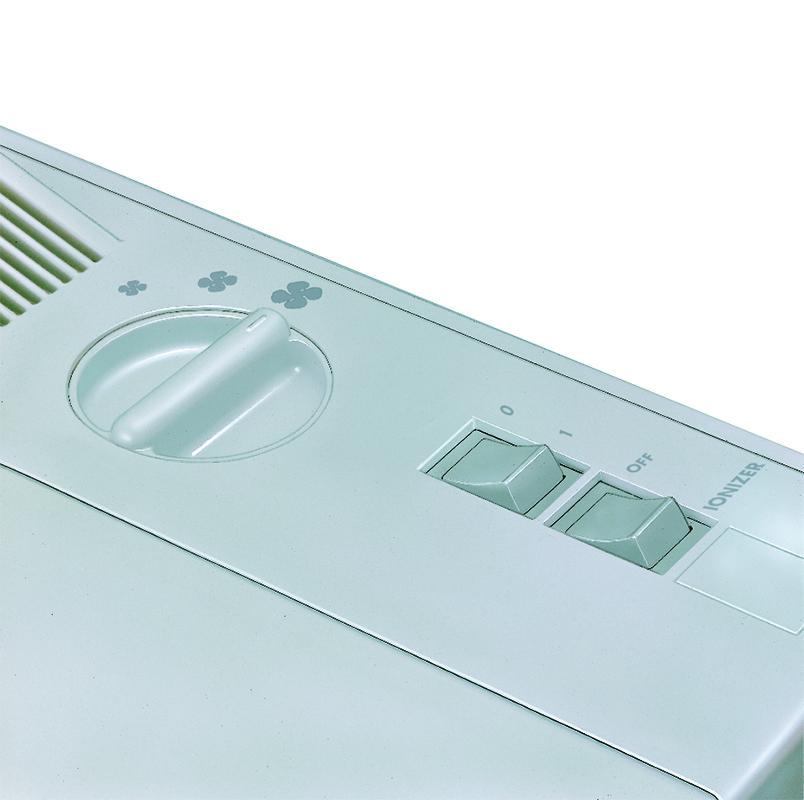

• Fan speed controlled by 3-position rotary switch.
• Power cord with moulded plug.
• IMQ safety certification.
• 3 speed motor with thermal overload protection and double extension shaft turning in self-lubricating bushings, coupled to 2 impellers made of thermoplastic material; vibration eliminated by rubber dampers located between motor and mounting.
• Washable polyester-polyurethane prefilter.
• Electrostatic double layer filter impregnated with activated carbon.
• Ionizing electrodes selectable by means of a switch located on the top of the casing
• On/off switch.
• Fan speed controlled by 3-position rotary switch.
• Power cord with moulded plug.
• IMQ safety certification.
Certifications
-
CE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
Max absorbed current (A)0,27
-
Max absorbed power (W)30
-
Max absorbed power at Max speed (W)30
-
Recommended room size (m³)35
-
Voltage (V)230
-
Weight (Kg)3,7
-
Sound power at Mid speed LWA [dB(A)]49
-
Sound power at Min speed LWA [dB(A)]40
-
Sound power at Min speed LWA [dB(A)]54
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed26,3
-
Sound pressure at 3m at Max speed Lp [dB (A)]39,3
-
Sound pressure at 3m at Min speed Lp [dB (A)]34,9
-

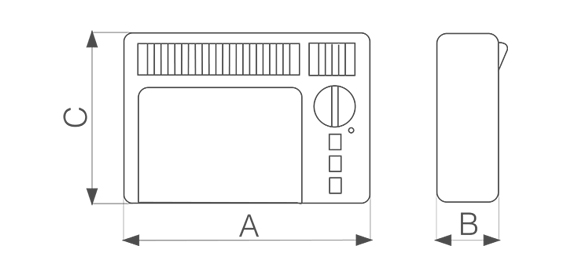

Size A (mm)420
-
Size B (mm)120
-
Size C (mm)315
