Technical Data Sheet

  • Filter class on extract
    ePM1 60%
  • Filter class on supply
    H14
  • Frequency (Hz)
    50-60
  • Insulation class
  • Max absorbed current (A)
    1,7
  • Max absorbed power (W)
    225
  • Max ambient temperature for continuous operation (°C)
    45
  • Min continuous operation room temperature (°C)
    -10
  • Number of phases (Ph)
    1
  • Voltage (V)
    220-240
  • Weight (Kg)
    45
  • Max airflow (m³/h)
    860
  • Sound power LWA at Max speed [dB (A)]
    67,2
  • Sound pressure at 1m at Max speed Lp [dB (A)]
    56,2
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    46,7
  • Surface up to (m2)
    160


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

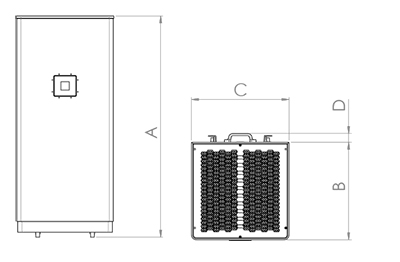

  • Size A (mm)
    1039
  • Size B (mm)
    455
  • Size C (mm)
    455
  • Size D (mm)
    41
quota

Accessories

Discover accessories related to the product

2PRE-FTR 340X290X20
2PRE-FTR 340X290X20
2FTR-EPM1 60% (F7) 300X400X23
2FTR-EPM1 60% (F7) 300X400X23
FTR-H14 400X400X292
FTR-H14 400X400X292
FTR-TV0CS 386X376X7
FTR-TV0CS 386X376X7
