Description

Read full descriptionClose description

Certifications

  • CE CE
  • CB TEST CERTIFICATE CB TEST CERTIFICATE

Technical Data Sheet

  • Filter class on extract
    ePM1 60%
  • Filter class on supply
    H14
  • Frequency (Hz)
    50-60
  • Insulation class
  • Max absorbed current (A)
    0,9
  • Max absorbed power (W)
    115
  • Max ambient temperature for continuous operation (°C)
    40
  • Min continuous operation room temperature (°C)
    -10
  • Number of phases (Ph)
    1
  • Voltage (V)
    220-240
  • Weight (Kg)
    40
  • Max airflow (m³/h)
    460
  • Sound power LWA at Max speed [dB (A)]
    61,7
  • Sound pressure at 1m at Max speed Lp [dB (A)]
    50,7
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    41,2
  • Surface up to (m2)
    85


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

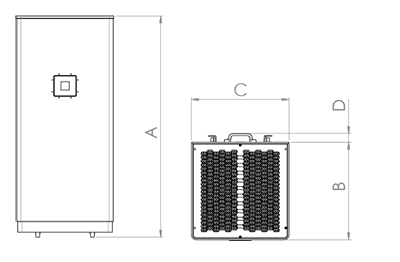

  • Size A (mm)
    862
  • Size B (mm)
    455
  • Size C (mm)
    455
  • Size D (mm)
    41
quota

Accessories

Discover accessories related to the product

2PRE-FTR 340X290X20
2PRE-FTR 340X290X20
2FTR-EPM1 60% (F7) 300X400X23
2FTR-EPM1 60% (F7) 300X400X23
FTR-H14 400X400X115
FTR-H14 400X400X115
FTR-TV0CS 386X376X7
FTR-TV0CS 386X376X7
