Description

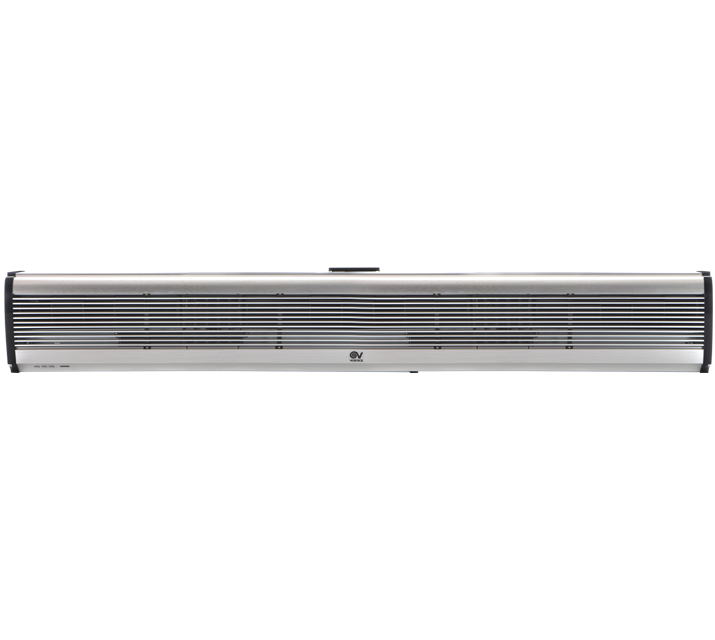

• Aluminium front panel with satin finish, colour silver, integrating the air inlet grille comprising 9 horizontal sections of polished aluminium. Rear pressed steel casing, colour black, functions as a frame to which all internal components are fixed. End caps moulded in ABS thermoplastic resin, colour black.
• Nominal width of appliance: 2.000 mm.
• EC (brushless) motor with thermal overload protection.
• 2 tangential fans moulded in thermoplastic resin (SAN) and ultrasonically welded, colour black, force air through a longitudinal vent located in the underside of the appliance.
• IR remote control with on/off and speed selection buttons; these same controls are also available on the front panel of the appliance (3 buttons).
• Power cord with moulded Schuko euro plug.
• Able to operate in conjunction with standard "door sensors".
• Adjustable fins for airstream orientation.
Read full descriptionClose description
Accessorio_6
Accessorio_7
Accessorio_8

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    1,6
  • Max absorbed power at Max speed (W)
    200
  • Number of speeds
    7
  • Voltage (V)
    220-240
  • Weight (Kg)
    20,5
  • Max airflow at Max speed (l/s)
    916
  • Max airflow at Max speed (m³/h)
    3300
  • Max flow speed (m/s)
    9,5
  • Max RPM
    1450
  • Sound pressure at 2m at Max speed Lp [dB (A)]
    57
  • Sound pressure at 2m at Min speed Lp [dB (A)]
    55

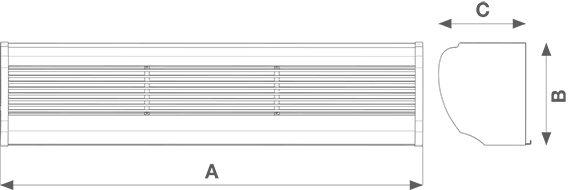

  • Size A (mm)
    2000
  • Size B (mm)
    220
  • Size C (mm)
    190
