Description

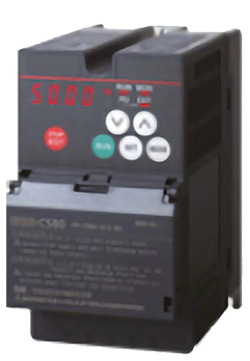

Speed frequency inverter; single-phase power supply, three-phase output, maximum load 10 A. Equipped with display and PID card. Certifications: CE / UL / CSA / EN / GOST / CCC. Protection degree: IP20.
Technical Data Sheet
-
Absorbed current at 230 V (A)10
-
Frequency (Hz)50-60
-
IP20
-
Voltage (V)230
-
Weight (Kg)1,4
-

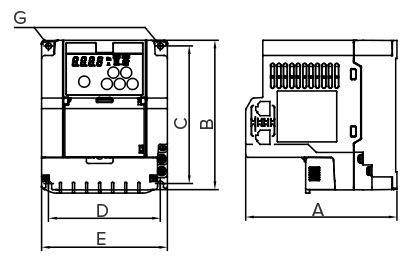

Size A (mm)160
-
Size B (mm)128
-
Size C (mm)118
-
Size D (mm)96
-
Size E (mm)108
-
Size G (mm)Ø 5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
