Description

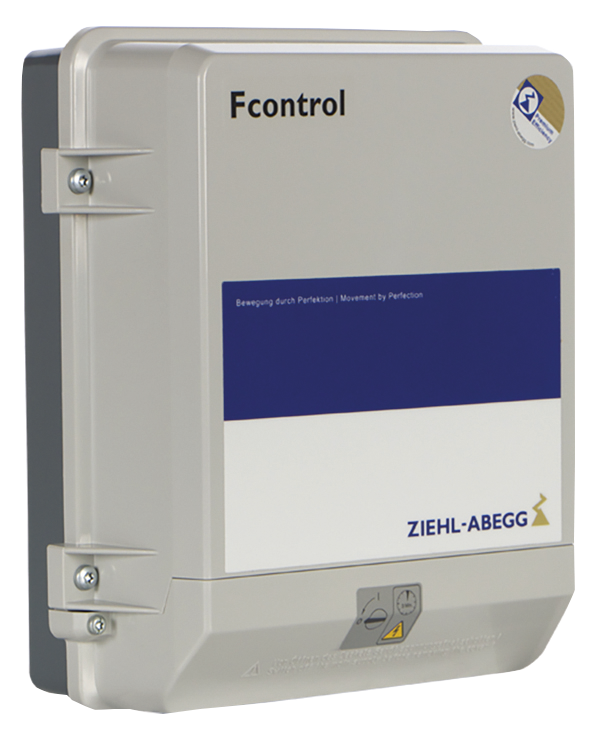

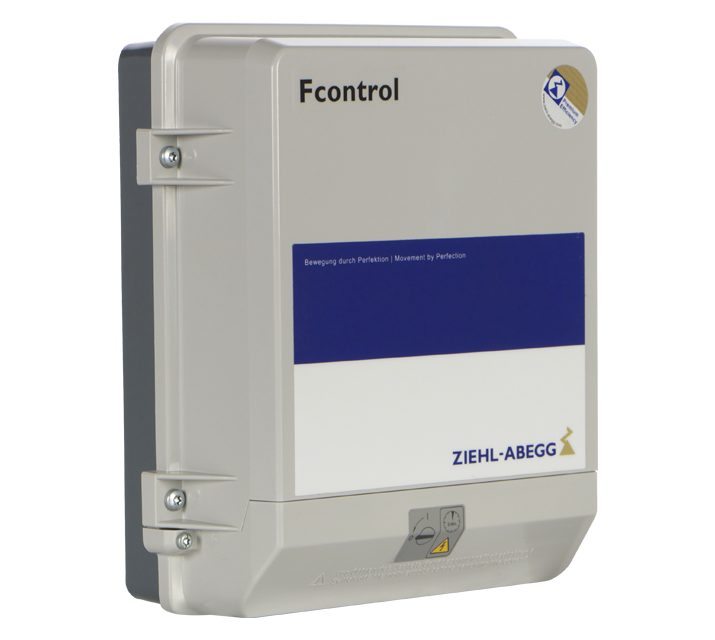

Three-phase speed controller
Technical Data Sheet
-
Frequency (Hz)50
-
I (T40) (A)5,0
-
I (T45) (A)5,0
-
I (T50) (A)5,0
-
I (T55) (A)5,0
-
Insulation classI°
-
IP54
-
Max absorbed current (A)5
-
Max ambient temperature for continuous operation (°C)55
-
Max output frequency (Hz)50
-
Min temperature (°C)-20
-
Number of phases (Ph)3
-
Supply voltage (V)208-480
-
Voltage (V)400
-
Weight (Kg)5,4
-

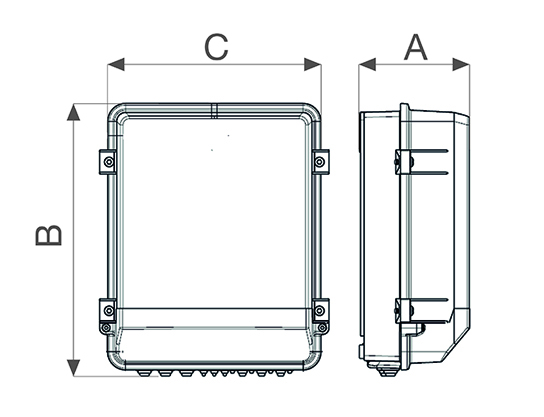

Size A (mm)195,5
-
Size B (mm)302
-
Size C (mm)250
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
