Description

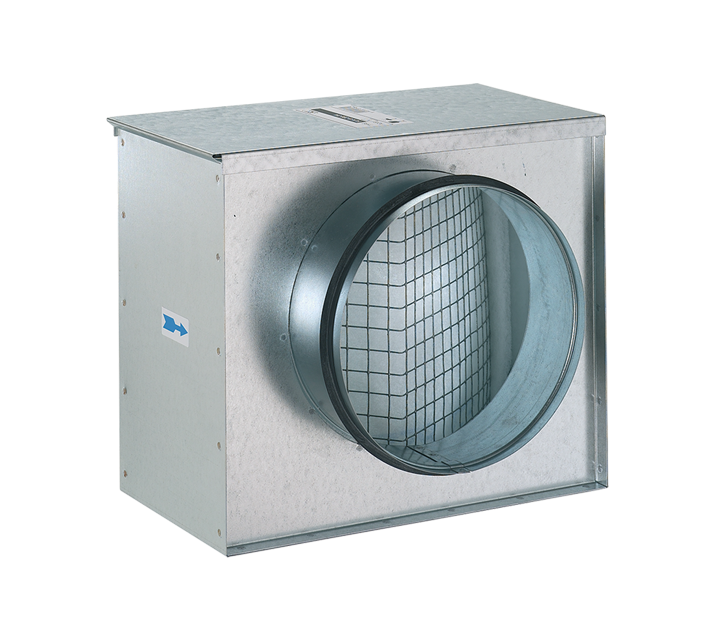

Filter box
• To be installed in the ventilation system, always after the fan, and/or the noise attenuator/duct heater
• Suitable to avoid impurities entering into the ventilation system
• Synthetic Fiber Filter ( G3/89% Filtration Class)
• Galvanized steel box, with cover fixed by two adapters to simplify maintenance
• Maximum working temperature : +60° C
• To be installed in the ventilation system, always after the fan, and/or the noise attenuator/duct heater
• Suitable to avoid impurities entering into the ventilation system
• Synthetic Fiber Filter ( G3/89% Filtration Class)
• Galvanized steel box, with cover fixed by two adapters to simplify maintenance
• Maximum working temperature : +60° C

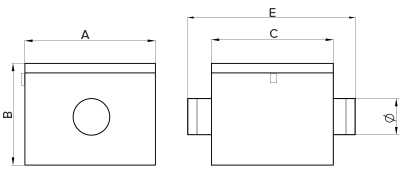

Technical Data Sheet
-
Weight (Kg)2,1
-
Ø (mm)100
-
Size A (mm)210
-
Size B (mm)170
-
Size C (mm)125
-
Size E (mm)227
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
