Description

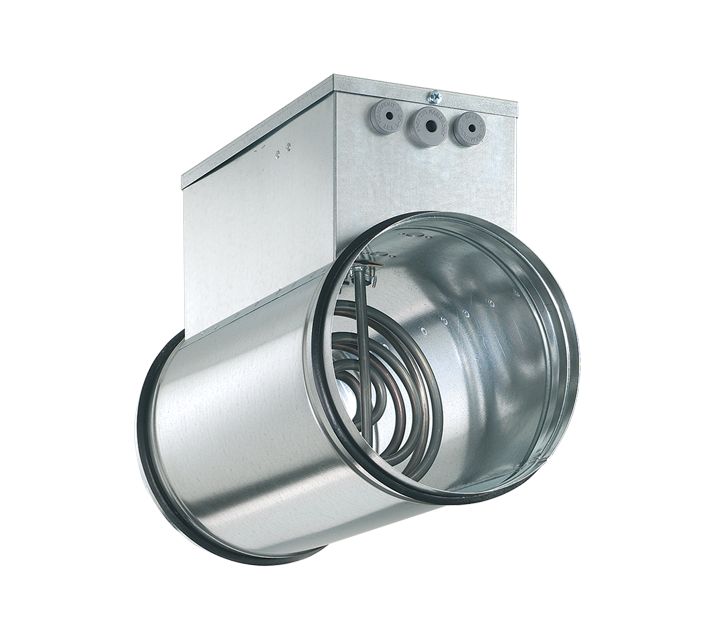

Duct heater
• To be installed in the ventilation system, always after the fan, and/or the noise attenuator/air filter
• Suitable for single phase and three phase systems
• Galvanized steel box, stainless steel electrical resistances carried by tubular duct in galvanized steel
• Working temperature from –30° C to +50° C (not suitable for chemical agents)
• To be installed in the ventilation system, always after the fan, and/or the noise attenuator/air filter
• Suitable for single phase and three phase systems
• Galvanized steel box, stainless steel electrical resistances carried by tubular duct in galvanized steel
• Working temperature from –30° C to +50° C (not suitable for chemical agents)
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
Max absorbed current (A)2,2
-
Max absorbed power (W)500
-
Number of phases (Ph)1
-
Voltage (V)230
-
Weight (Kg)2,57
-
Max airflow (m³/h)64
-

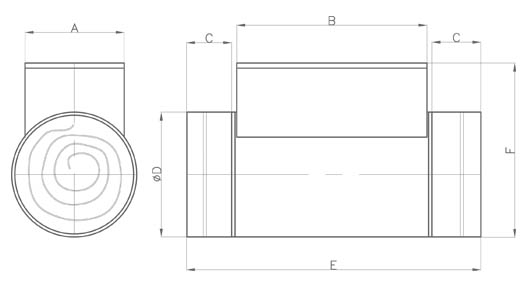

Size A (mm)125
-
Size B (mm)285
-
Size C (mm)40
-
Size D (mm)125
-
Size E (mm)325
-
Size F (mm)225
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
