Description

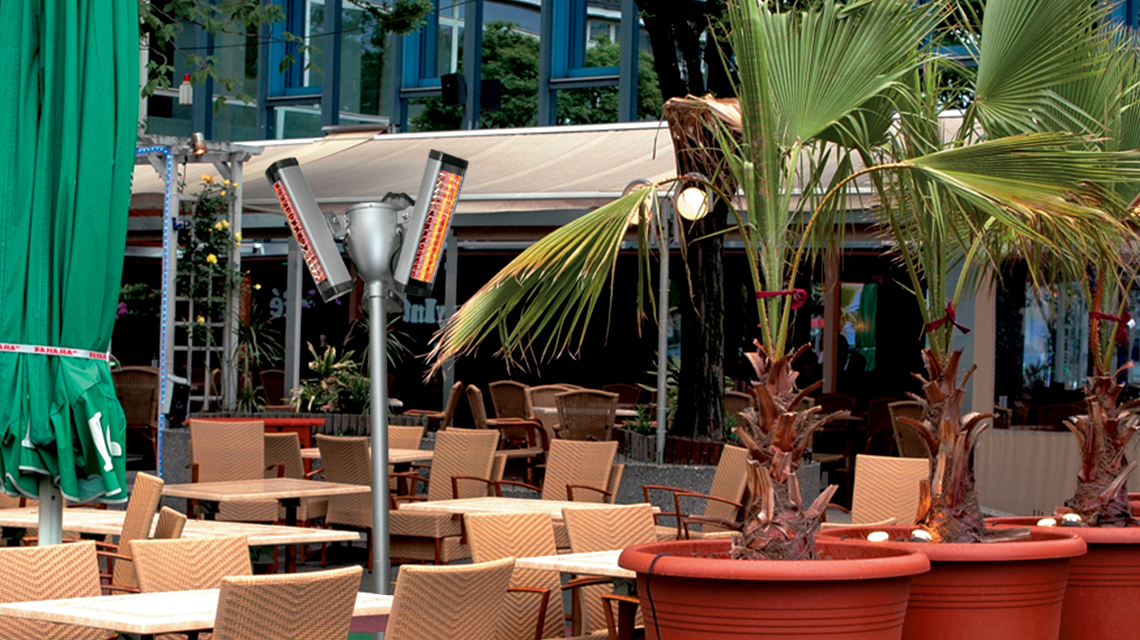

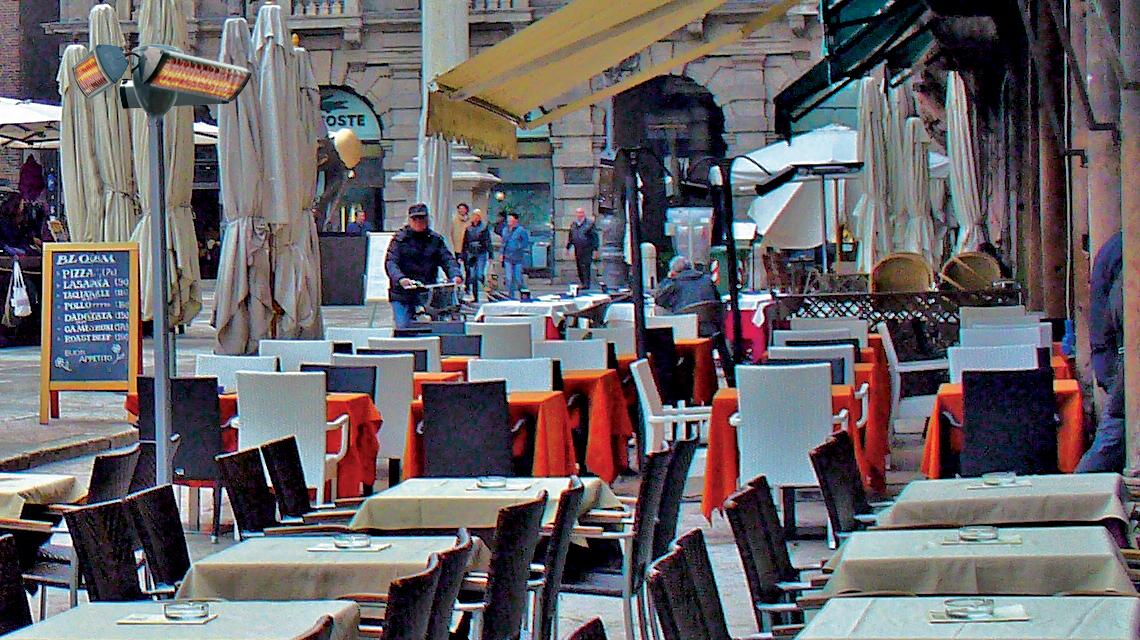

• Stand for thermologika soleil plus
• Useful accessory on which 1 to 3 lamps can be fitted.
• Suitable for areas where other types of fixture are not possible.
• Colour: aluminium.
• Maximum power: 4500 W (with 3 lamps installed).
• The lamps can be mounted vertically or horizontally
and can be adjusted to direct the heat where needed.
• The connection cable can be routed inside the stand,
from the bottom, or can be positioned at the top.
• Epoxy polyester painted steel.
• Flat base with rubber feet.
• Protection rating: IPX5.
• Insulation class: Cl.I.
• Useful accessory on which 1 to 3 lamps can be fitted.
• Suitable for areas where other types of fixture are not possible.
• Colour: aluminium.
• Maximum power: 4500 W (with 3 lamps installed).
• The lamps can be mounted vertically or horizontally
and can be adjusted to direct the heat where needed.
• The connection cable can be routed inside the stand,
from the bottom, or can be positioned at the top.
• Epoxy polyester painted steel.
• Flat base with rubber feet.
• Protection rating: IPX5.
• Insulation class: Cl.I.
Technical Data Sheet
-
Frequency (Hz)50
-
Voltage (V)230
-
Weight (Kg)17
-
Dimension E1 (mm)655
-
Dimension E2 (mm)645
-
Size A (mm)560
-
Size B (mm)2300
-
Size C (mm)175
-
Size D1 (mm)1970
-
Size D2 (mm)2090
-
Size F (mm)2370
-
Size G1 (mm)30°
-
Size G2 (mm)45°
-
Size H (mm)120°
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
